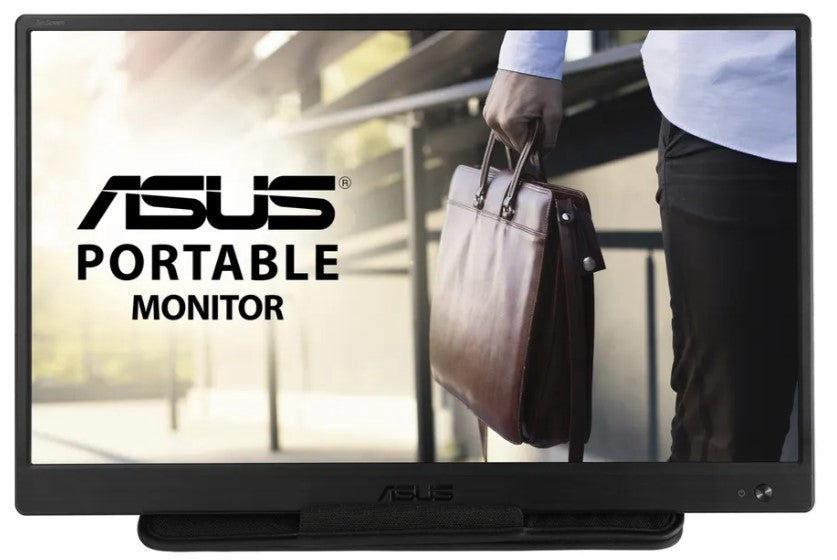

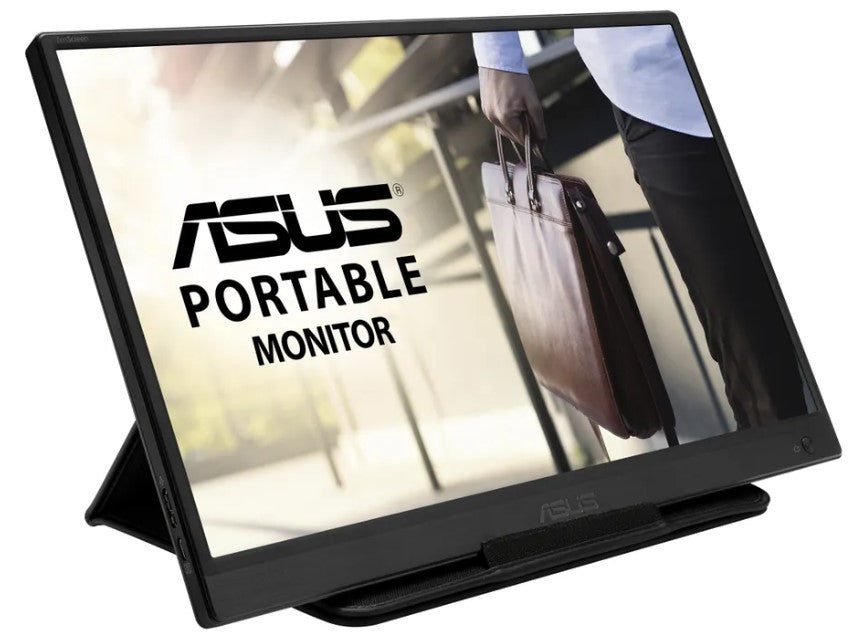

ASUS ZenScreen MB165B Portable USB Monitor- 15.6 inch, HD

The ASUS ZenScreen MB165B Portable USB Monitor features a 15.6-inch HD display (1366x768 resolution) with a narrow bezel and an anti-glare surface. It’s powered via a single USB cable, making it convenient for on-the-go productivity. Additionally, the slim design and automatic orientation sensing enhance its versatility.

• Display: 15.6-inch HD monitor (1366x768 resolution) with a narrow bezel and an anti-glare surface.
• Power and Connectivity: It’s powered via a single USB cable, which also handles video signal transmission.
• Slim Profile: The slim and thin design makes it efficient for on-the-go productivity.
• User-Friendly Features:
  • Embedded tripod socket on the rear.
  • Foldable sleeve for versatility.
  • Automatic orientation sensing (switches between landscape and portrait modes).

Sleek and Portable Design:

Weighs only 0.78 kg.

Slim profile (11.8 mm) for easy portability.

Single Cable Convenience:

Powered via a single USB cable for both video signal and power.

Fully compatible with most laptops.

Install the USB Monitor Driver before use.

Comfort and Versatility:

Rear ¼”-threaded hole allows attachment to a conventional tripod or table mount (tripod not included).

Automatic orientation sensing with ASUS DisplayWidget software.

Landscape mode for presentations and spreadsheets, portrait mode for documents and books.

Remember to install the USB Monitor Driver and enjoy productivity wherever you go!

Tech Specs

• Model:
  • ZenScreen MB165B

• Display:
  • Panel Size (inch): 15.6
  • Aspect Ratio: 16:9
  • Display Viewing Area (H x V): 344.23 x 193.54 mm
  • Display Surface: Non-Glare
  • Backlight Type: LED
  • Panel Type: TN
  • Viewing Angle (CR?10, H/V): 90°/65°
  • Pixel Pitch: 0.252 mm
  • Resolution: 1366x768 (WXGA)
  • Brightness (Typ.): 220 cd/?
  • Contrast Ratio (Typ.): 500:1
  • Display Colors: 260K
  • Response Time: 10 ms (Tr+Tf)
  • Refresh Rate (Max): 60 Hz
  • Flicker-Free: No

• Video Feature:
  • HDCP: Yes
  • DisplayWidget: Yes

• Audio Feature:
  • Speaker: No

• I/O Ports:
  • USB 3.2 (Signal): x 1

• Power Consumption:
  • Power Consumption: <7W
  • Power Saving Mode: <0.5W
  • Power Off Mode: <0.3W
  • Voltage: DC 5V, 3A

• Mechanical Design:
  • Height Adjustment: No
  • 1/4" Tripod Socket: Yes

• Dimensions (Estimated):
  • Phys. Dimension without Stand (W x H x D): 360.14 x 225.64 x 11.8 mm
  • Box Dimension (W x H x D): 434 x 290 x 76 mm

• Weight (Estimated):
  • Net Weight without Stand: 0.78 kg (780 g)
  • Gross Weight: 1.65 kg (1.65 kg)

• Accessories (Varies by Regions):
  • Quick start guide
  • USB 3.2 cable
  • Warranty Card
  • ZenScreen sleeve

Note: For auto rotation, brightness, and contrast adjustment functions, visit the product page and find the “support” tab to download and install the latest DisplayWidget tool. DisplayWidget works under Windows OS only.
