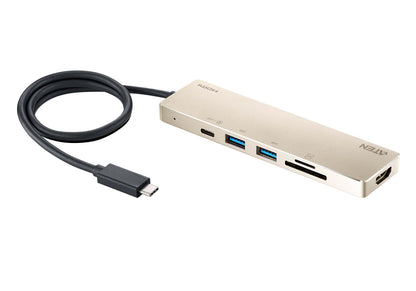

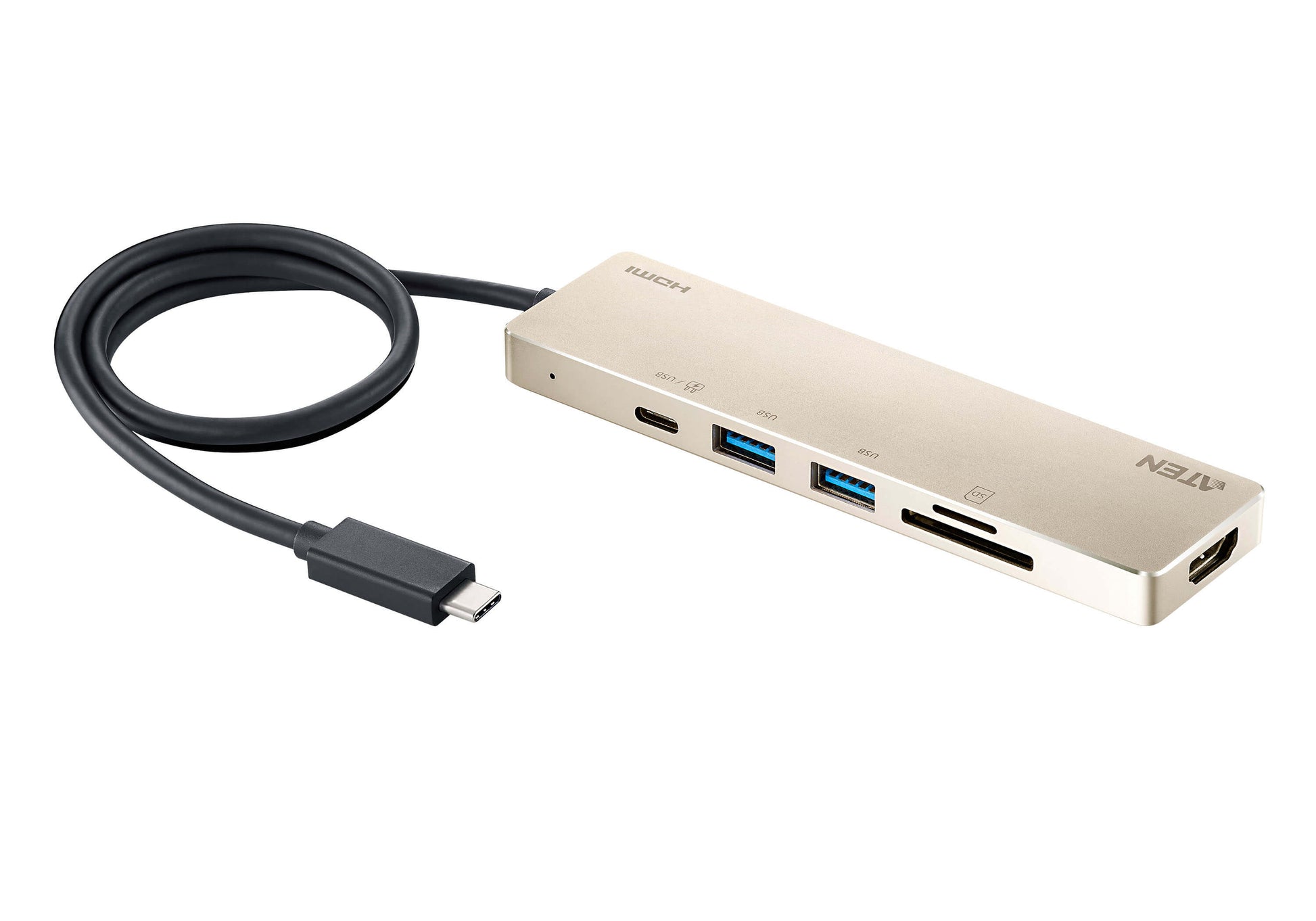

ATEN USB-C 6-in-1 Mini Dock with Power Pass-Through

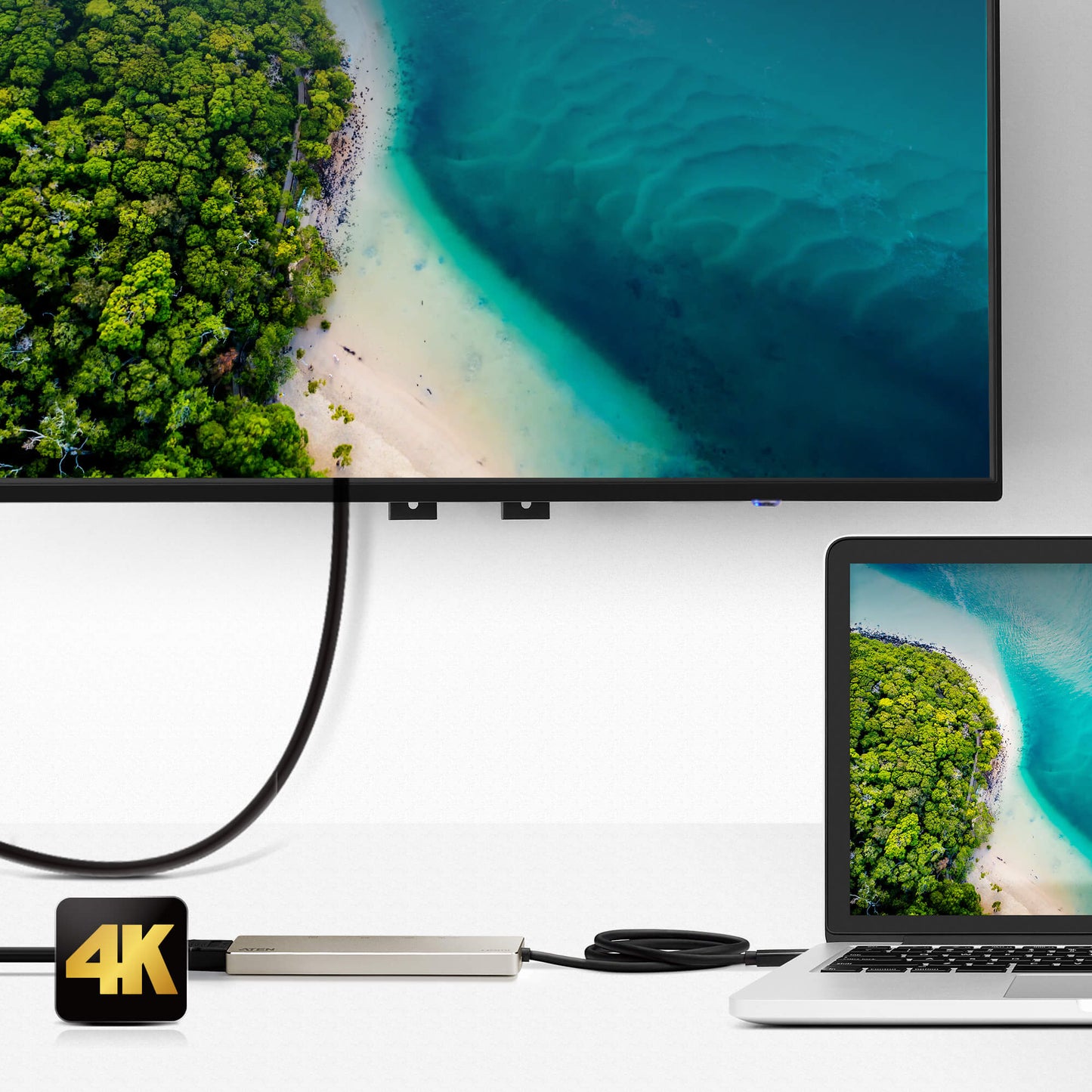

The UH3239 is a versatile dock allows peripheral connectivity while delivering power to the connected USB-C device. It supports 4K HDMI resolution (3840 x 2160 @ 30Hz) for sharp video display. The two USB 3.2 Gen 1 Type-A ports offer effective communication with peripherals at 5 Gbps. Plus, the USB-C PD port eliminates tangled data cables.

(*Requires device with USB-C DP Alt mode)

The UH3239 is plug-and-play compatible with major operating systems (Windows®, macOS X, and iPadOS), making it an ideal solution for mobile workstations.

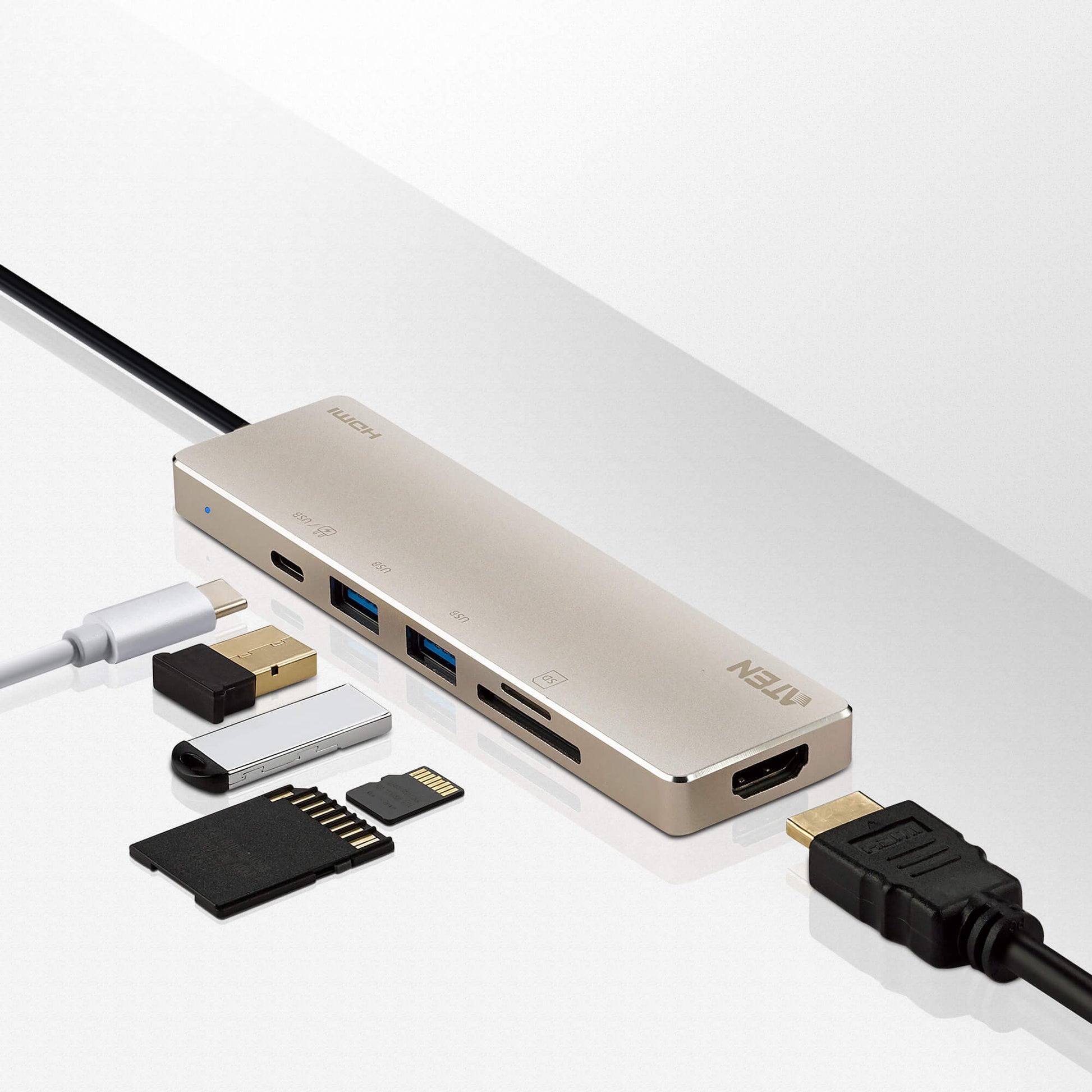

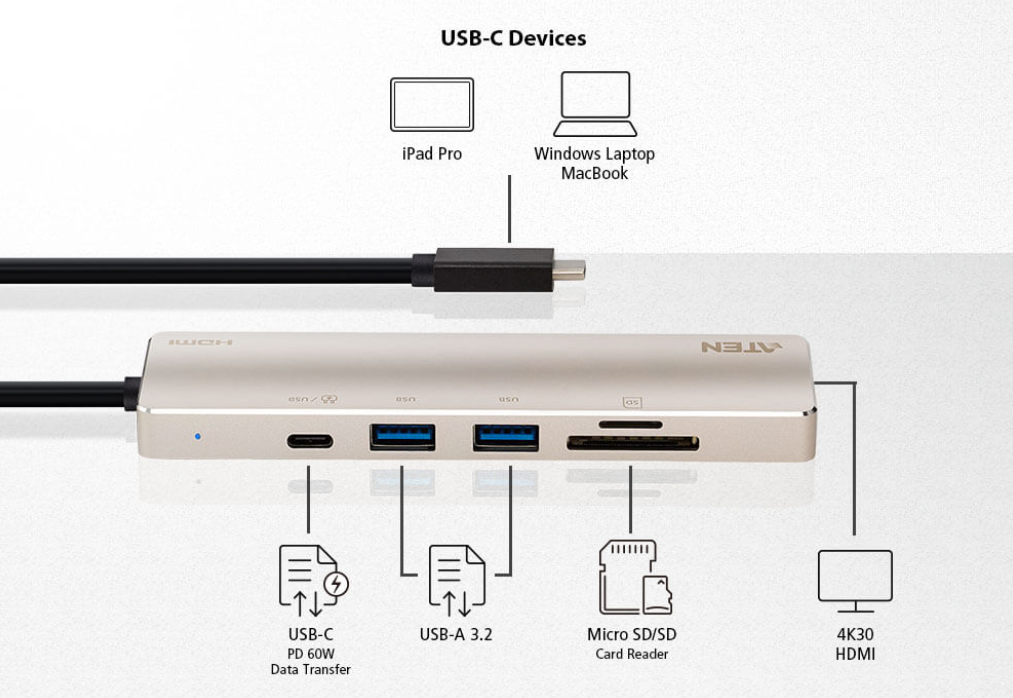

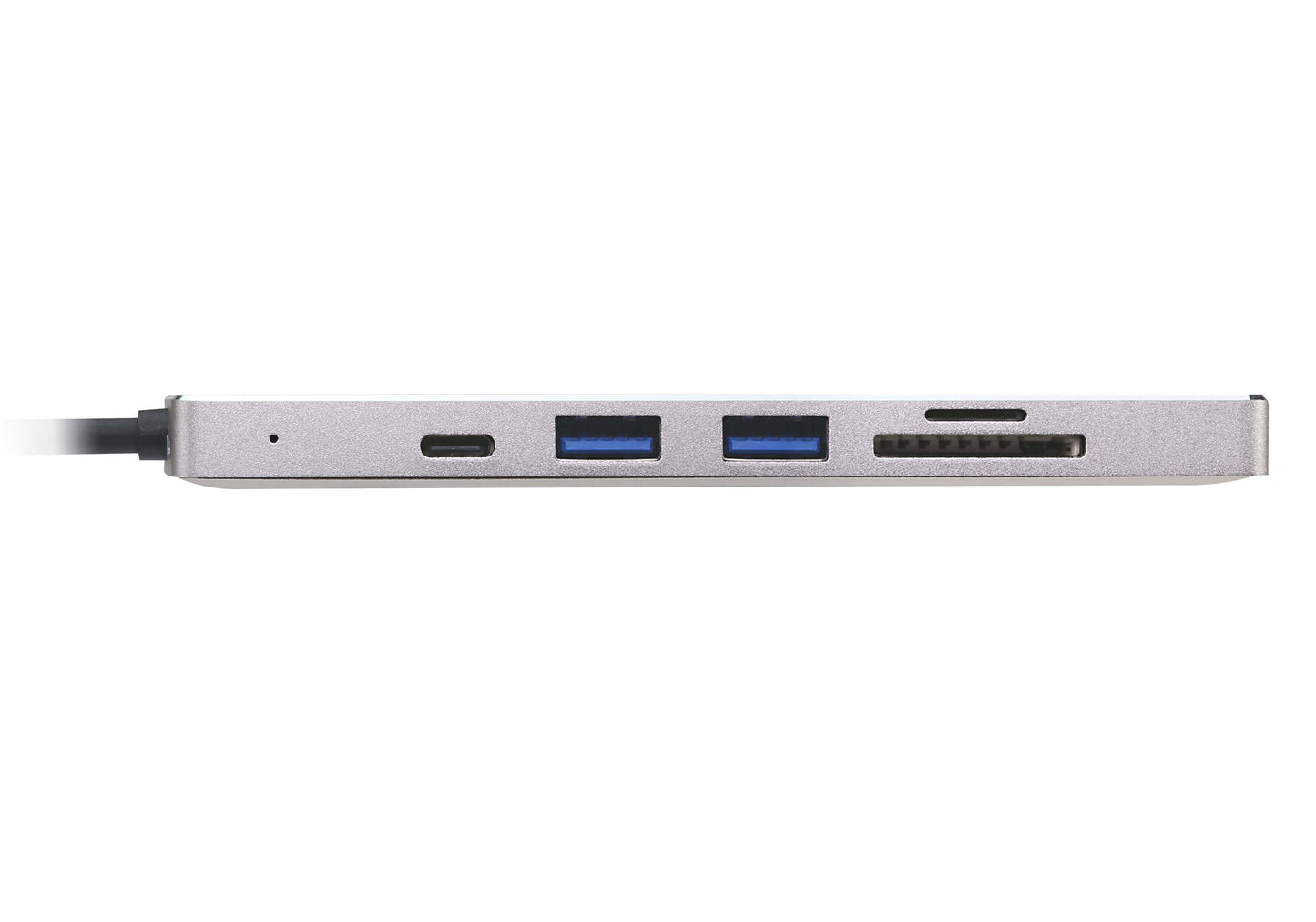

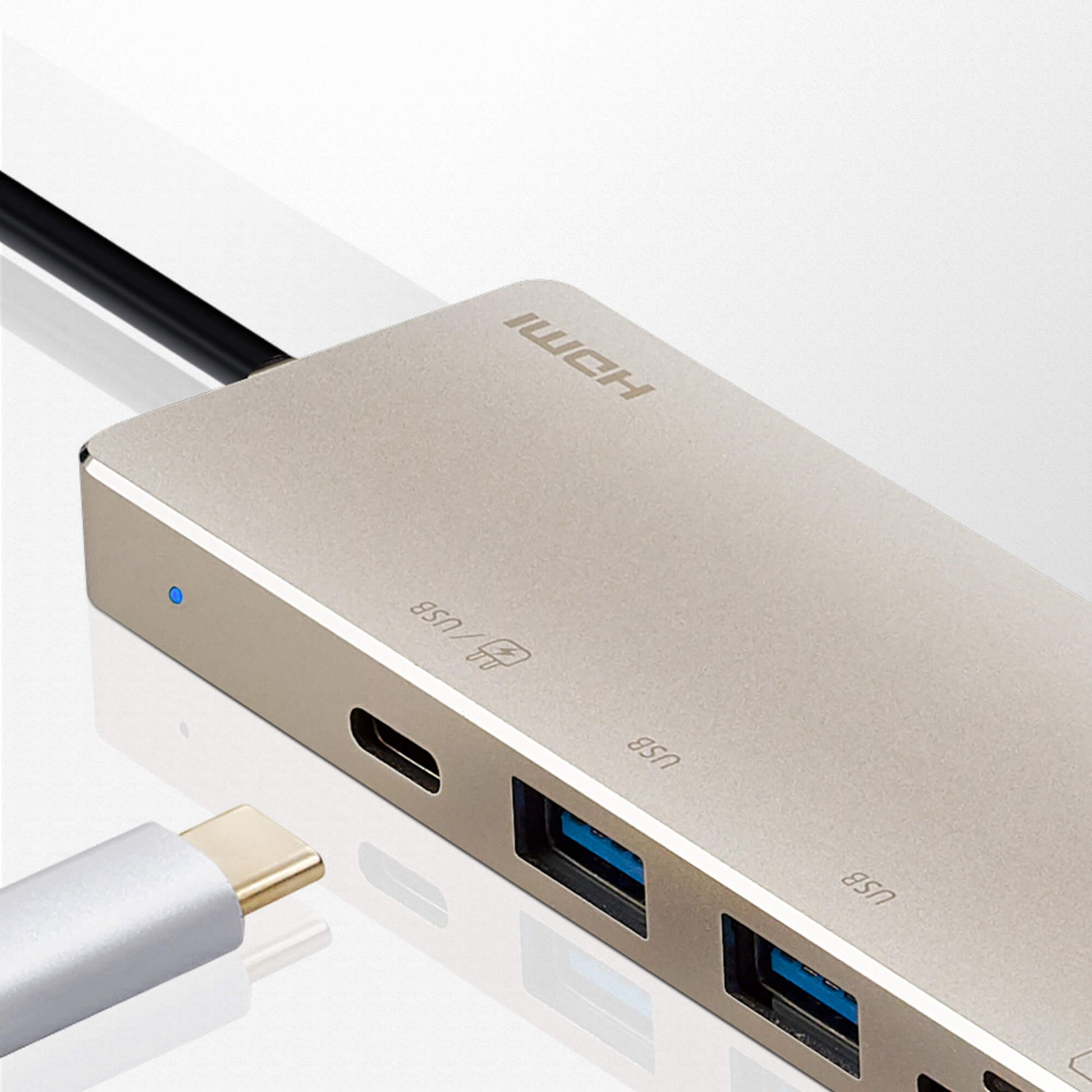

The UH3239 is a portable 6-in-1 adapter designed for USB-C PCs or laptops. Its durable aluminum enclosure features the following ports:

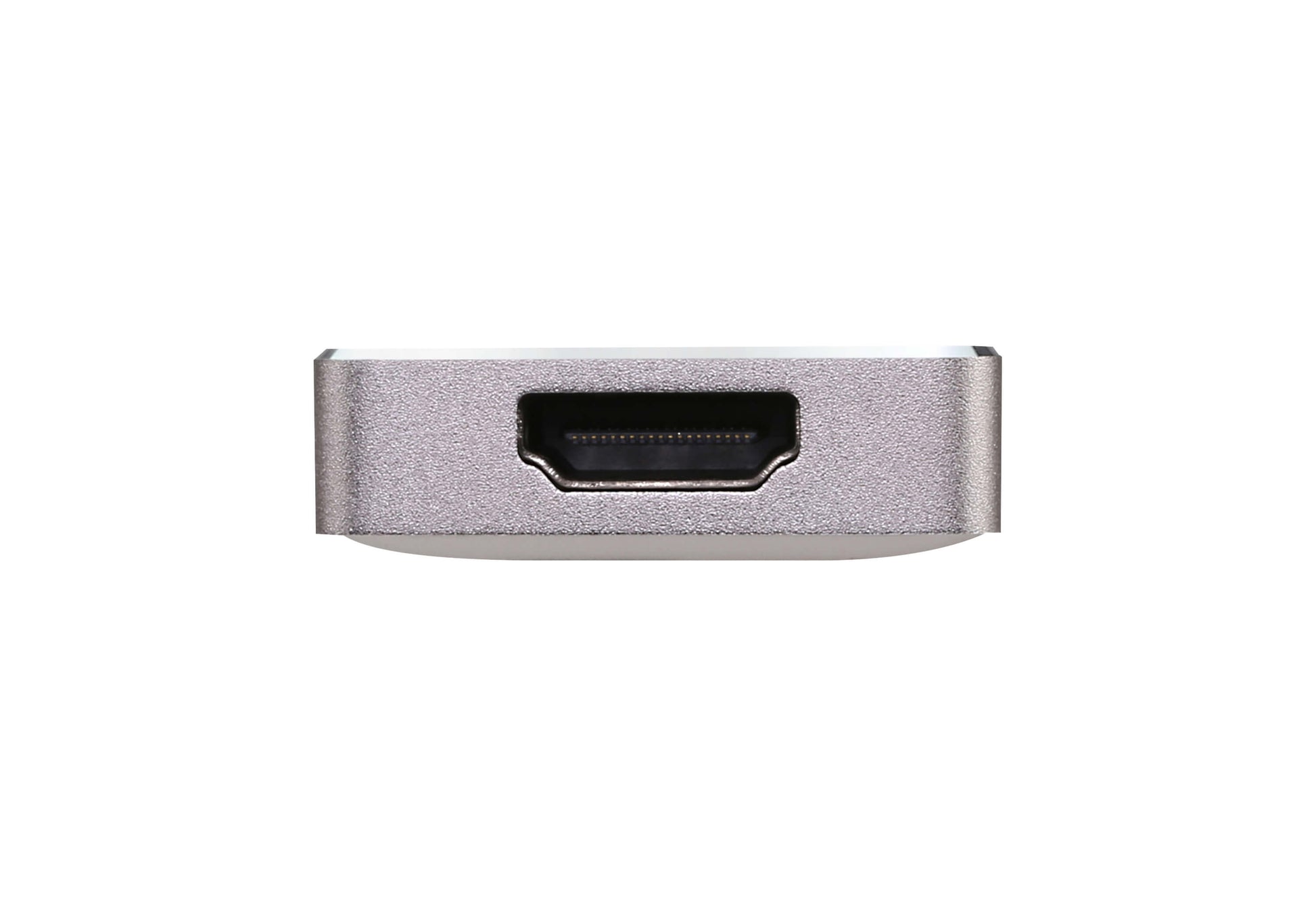

1. HDMI port: Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for high-quality video output.

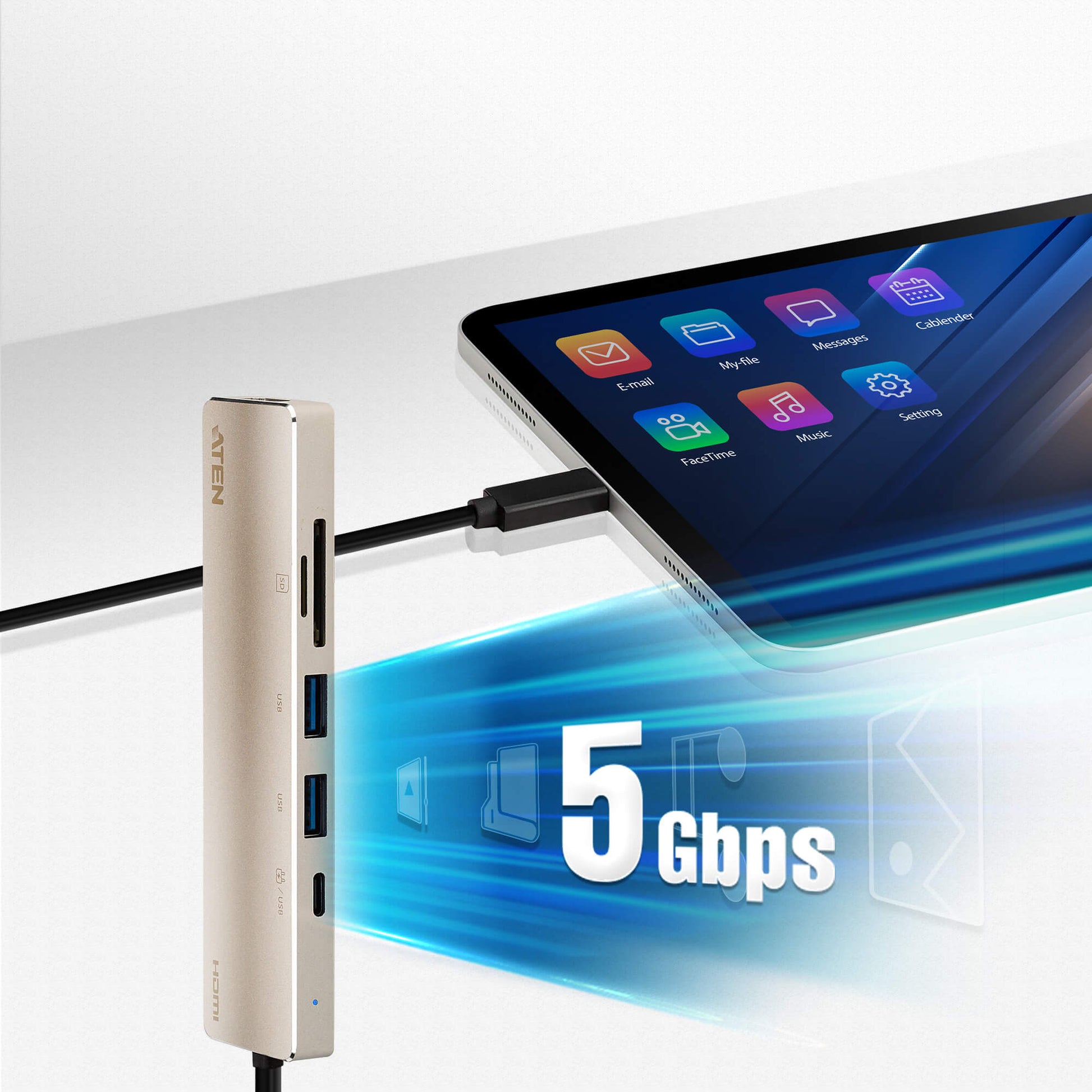

2. Dual USB 3.2 Type-A ports: These allow effective communication with peripherals at a decent 5 Gbps transmission speed.
3. USB-C PD port: Provides power delivery (up to 60W) to connected USB-C devices, eliminating tangled data cables.
4. SD card and MicroSD card slots: Convenient for accessing memory cards.
5. Plug-and-play compatibility: Works seamlessly with major operating systems, including Windows®, macOS X, and iPadOS.
6. Thunderbolt™ 3 (USB-C) compatibility: Ensures versatility and broad device support.

Whether you’re a professional on the go or building a mobile workstation, the UH3239 offers a compact and competent solution for data and power transmission. Plus, it’s Apple M1 chip compatible!

Technical Specifications

Computer Connections:

• 1

Cable Length:

• 55cm

Connectors:

• Computer:
  • USB 3.2 Gen1 Type-C Male Cable
• Device:
  • 2 x USB 3.2 Gen 1 Type-A female (Max. output 5V, 4.5W for each)*
  • 1 x USB 3.2 Gen 1 Type-C female (Max. output 5V, 12W)*
  • *Note: 2 x USB-A and 1 x USB-C ports share a total of 5V, 12W when UH3239 is powered by the PC via USB-C (@5V,3A bus-powered).

Power:

• 1 x USB Type-C Female (supports USB 3.2 Gen1 Type-C Port data transfer)
• Supports Power Delivery 2.0 for laptop charging up to 60W (power profiles include 5V, 12V, 15V, 20V; additional USB-C power adapter needed)

Video Output:

• 1 x HDMI Female (Black)

Performance:

• Flash Memory:
  • Supports SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0
  • SD (Capacity up to 2GB)
  • SDHC (Capacity up to 32GB)
  • SDXC (Capacity up to 2TB)
• Video Resolution:
  • 3840 x 2160@30Hz
• Power Consumption:
  • DC5V: 15W BTU/h
  • Note: The measurement in Watts indicates the typical power consumption of the device with no external loading. The measurement in BTU/h indicates the power consumption when the device is fully loaded.

System Requirements:

• Windows 10 or later, USB-C enabled computer with DP Alt Mode*
  • With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation can be found here: Intel Processor Numbers
• Mac OS X 10.12 or later, USB-C enabled computer
• iPadOS 13.1 or later, iPad Pro (USB-C)

Environmental:

• Operating Temperature:
  • 0 – 40°C
• Storage Temperature:
  • -20 – 60°C
• Humidity:
  • 0 – 80% RH, Non-condensing

Physical Properties:

• Housing:
  • Aluminum
• Weight:
  • 0.07 kg (0.17 lb)
• Dimensions (L x W x H):
  • 13.30 x 3.60 x 1.10 cm (5.24 x 1.42 x 0.43 in.)

Warranty:

• 1 Year Manufacturers Carry-in warranty
