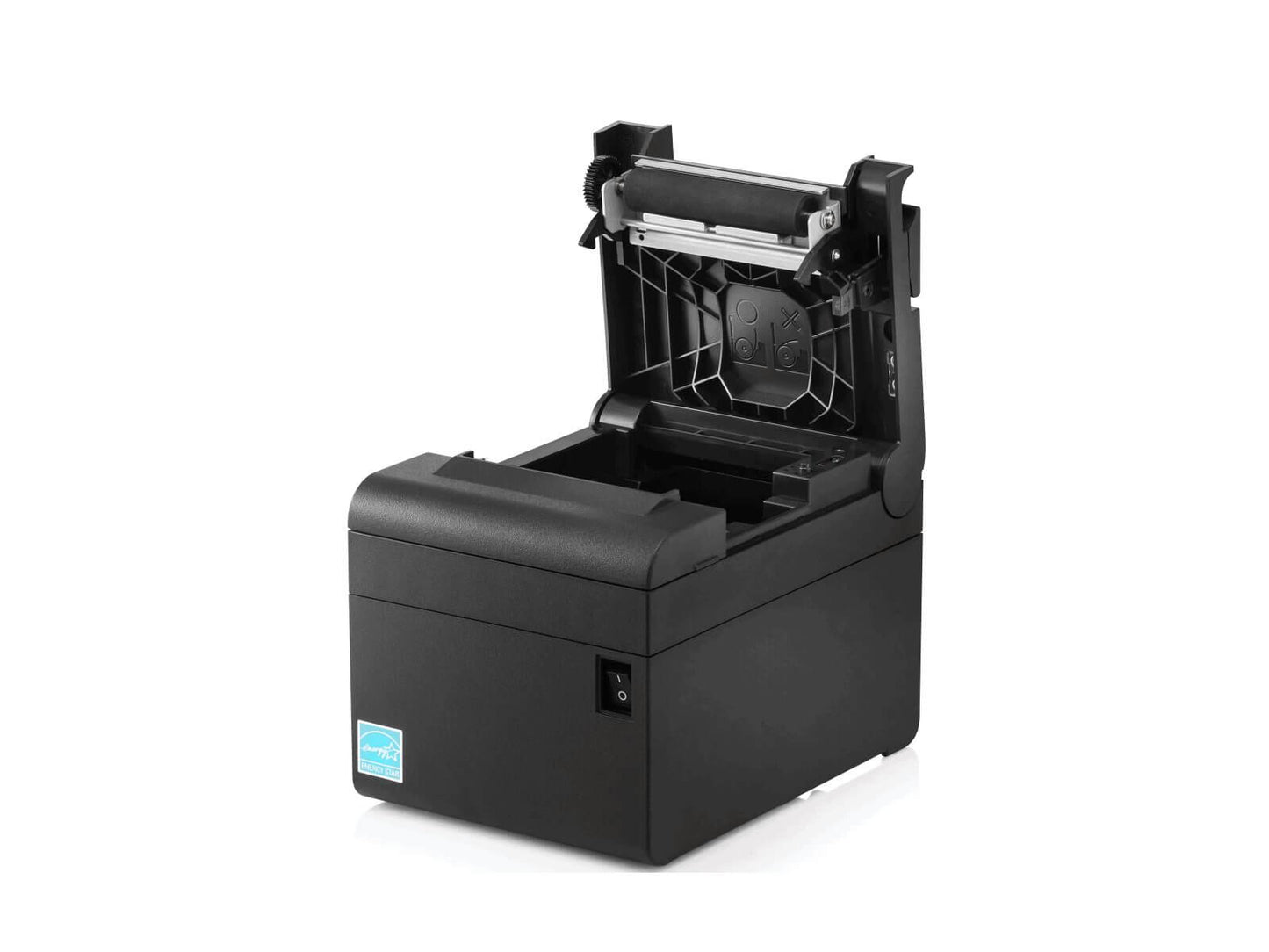

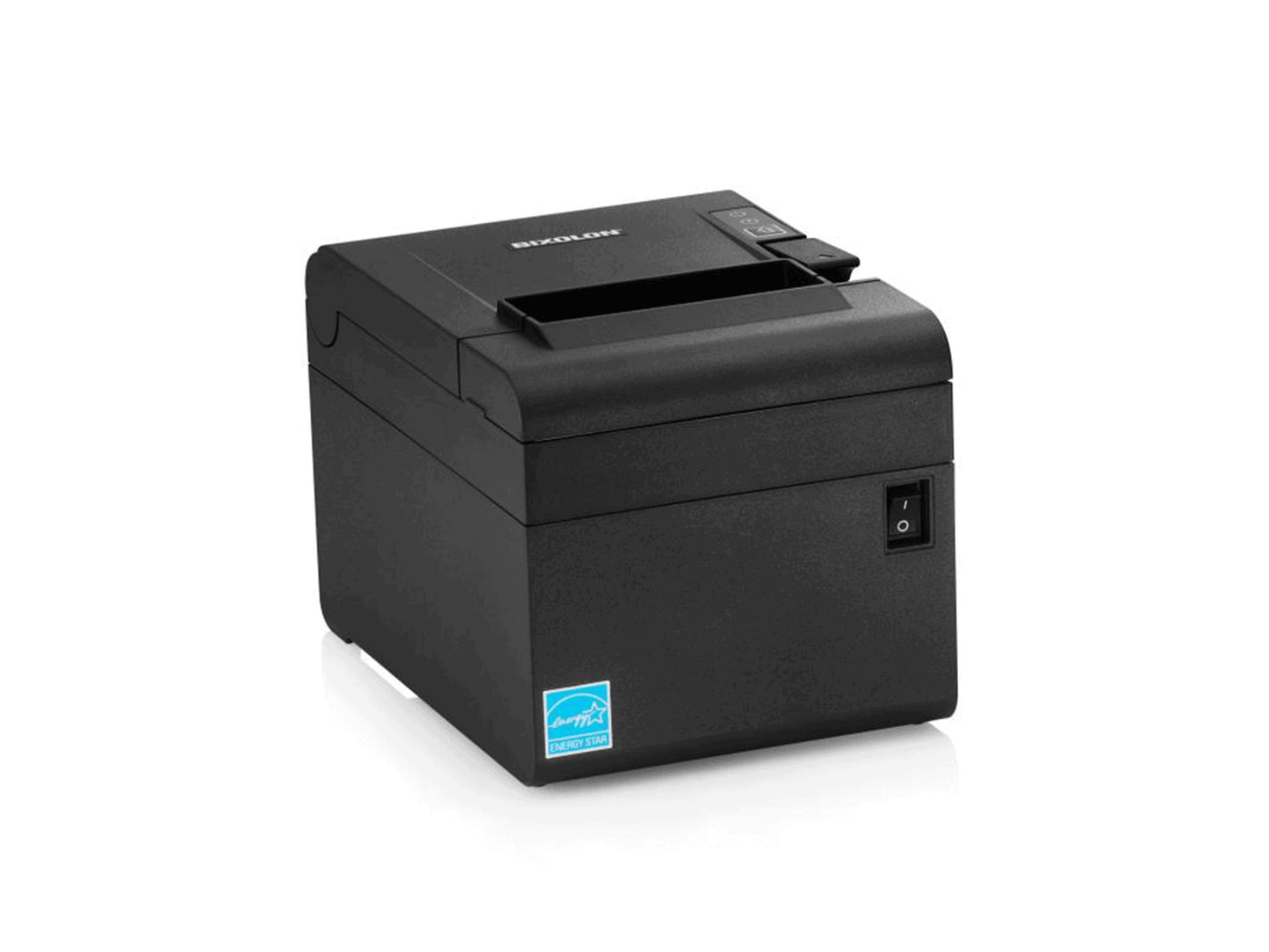

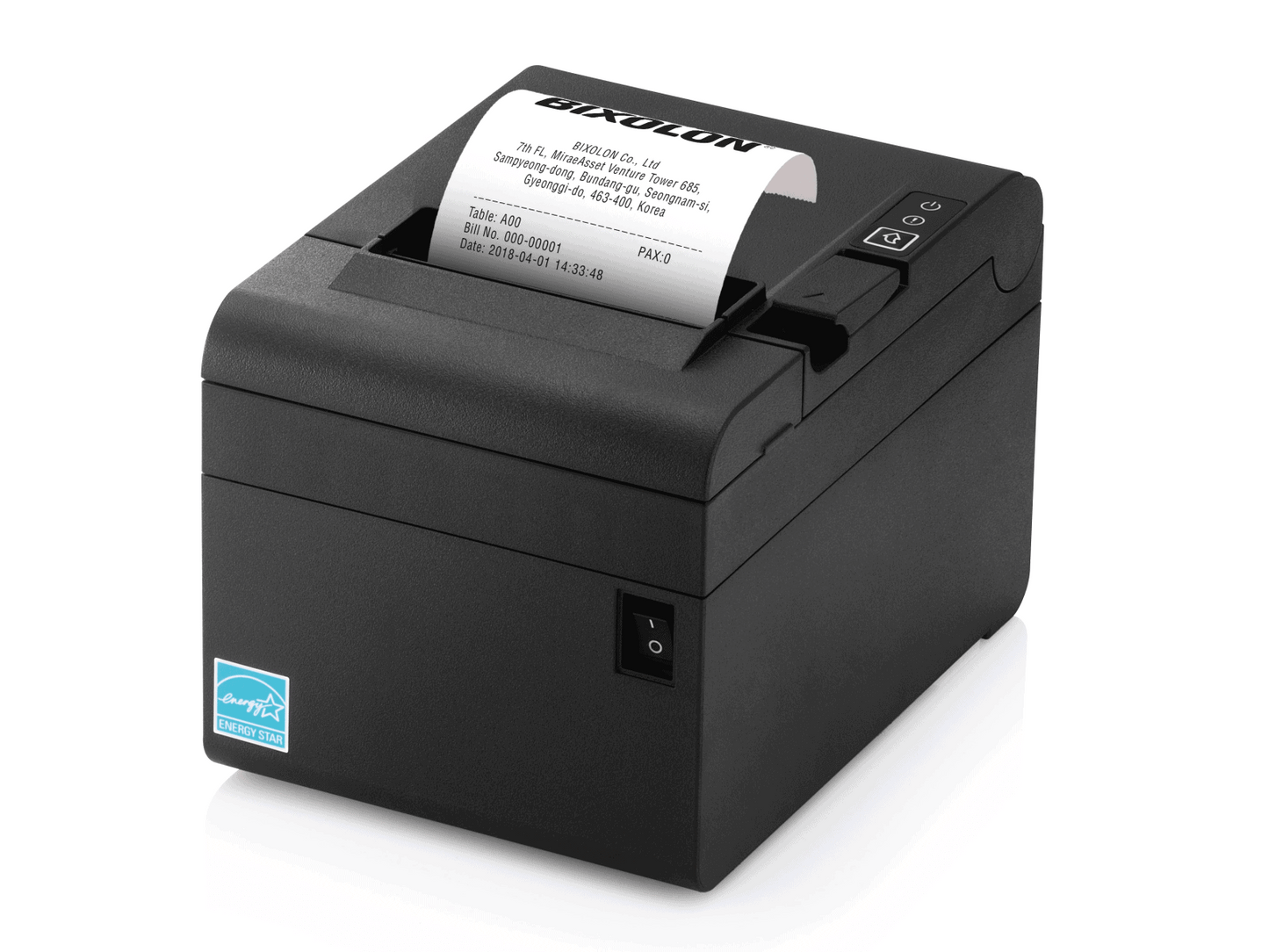

Bixolon SRP-E300 3 Inch Direct Thermal Receipt Printer - USB SERIAL LAN

SRP-E300 Receipt Printer

• Cost-effective 3" (80mm) direct thermal printer.
• Ideal for retail, hospitality, and banking.
• Print speeds up to 220mm/sec.
• 180dpi resolution for high-quality graphics, text, and barcodes.
• Reliable mechanism with 150km TPH lifespan.
• Auto Cutter capable of 1.5 million cuts.
• Compatible with major operating platforms (Windows®, iOS™, Android™, Linux®, etc.).
• Compact, ergonomic design for stand-alone or wall-mounted use.
• Available in USB-only or BIXOLON’s all-in-one Plus™ Interface.
• Includes paper-saving mode (up to 25% reduction in receipt length).
• Comes with a 2-year warranty and Energy Star Certification.

Specifications

Print Characteristics:

• Print Method: Direct Thermal (Top / Front Exit)
• Print Speed: SRP-E300: 180dpi, SRP-E302: 203dpi
• Print Resolution: 220 mm/sec
• Print Width: Up to 72mm
• Sensor: Paper End

Media Characteristics:

• Media Type: Receipt
• Media Width: 80 mm
• Media Roll Diameter: Up to 83 mm
• Media Thickness: 0.062 ~ 0.075 mm
• Supply Method: Easy Paper Loading

Physical Characteristics:

• Dimensions (WxDxH): 132 x 182.4 x 128.5 mm (5.19 x 7.18 x 5.05 inch)
• Weight: 1.23 kg (2.71 lbs)

Electrical:

• EnergyStar Certified
• External Power Adaptor: 100-240V AC, 50/60Hz
• Drawer Port: 2 ports (Via y-type adaptor)

Performance Characteristics:

• NV Image Memory: 768 Kbytes (Mono)
• Receive Buffer: 4 Kbytes
• User Define Buffer: 12 Kbytes

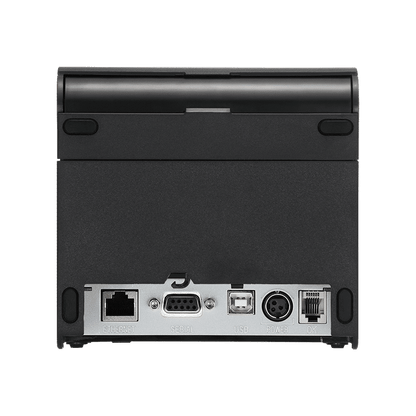

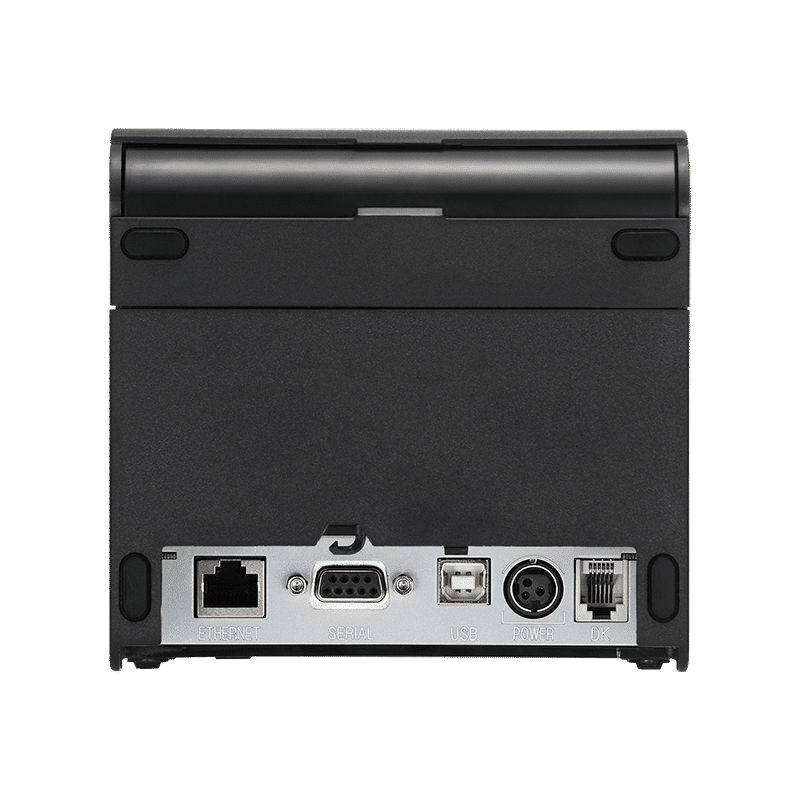

• Interface: USB V2.0 FS + Ethernet + Serial

Environment Characteristics:

• Operating Temperature: 0 ~ 40°C (32 ~ 104°F)
• Storage Temperature: -20 ~ 60°C (-4 ~ 140°F)
• Operating Humidity: 10 ~ 80% RH
• Storage Humidity: 10 ~ 90% RH

Reliability:

• Thermal Print Head (TPH) Lifespan: 150 km
• Auto Cutter Lifespan: 1.5 Million Cuts
• Specified Paper Types: TF50KS-E, PD 150R, PD 160R, P350

Software:

• Emulation: BXL / POS
• Drivers and Utilities: Windows, OPOS, JPOS, CUPS (Linux/Mac), Virtual COM USB
• SDKs and Plugins: iOS, Android, Windows, Linux, Xamarin, Chrome, Cordova

Fonts/Graphics/Symbologies:

• Character Size: Font A, B, C (varies by language)
• Characters Per Line: SRP-E300: Font A: 42, Font B, C: 56; SRP-E302: Font A: 48, Font B, C: 64
• Character Sets: Alphanumeric, Extended Graphics, International
• Graphics: Supports user-defined fonts, graphics, formats, and logos
• Barcode Symbologies: 1D (Coda Bar, Code39, Code93, Code128, etc.), 2D (Data Matrix, PDF417, QR Code)

Accessories:

• Standard: USB A-B Cable
• Optional: External buzzer, B-Melodist
