BIXOLON XD3 4 INCH Direct Thermal LABEL Printer
BIXOLON XD3 4 INCH Direct Thermal LABEL Printer
Couldn't load pickup availability

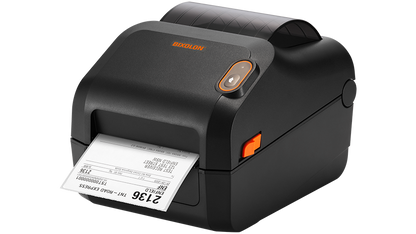

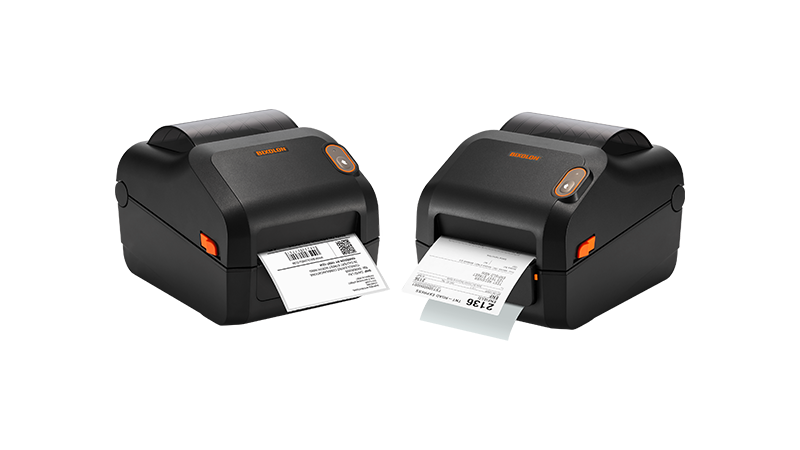

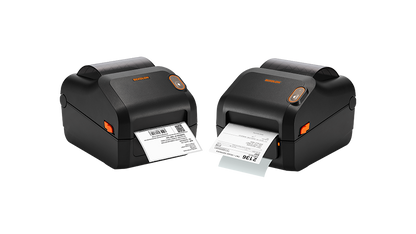

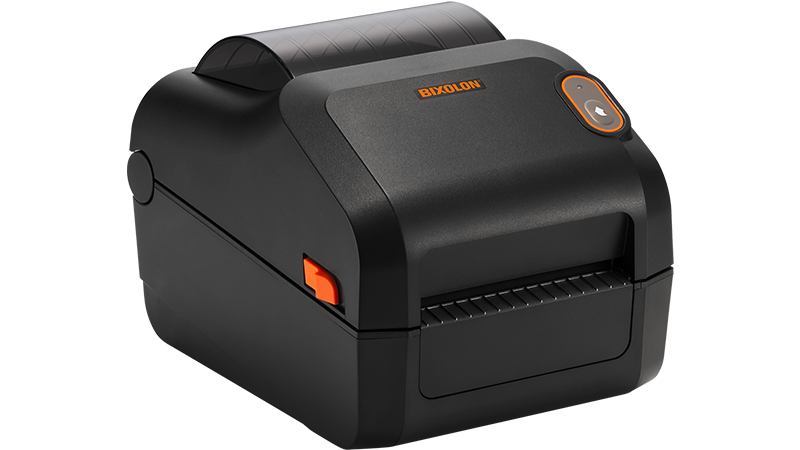

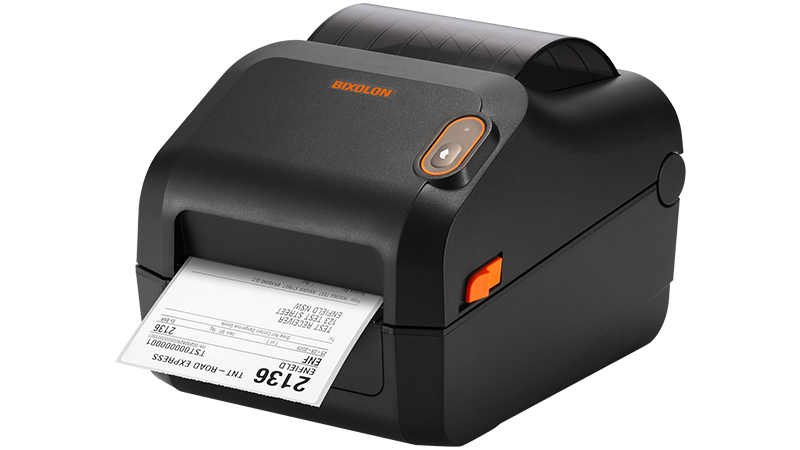

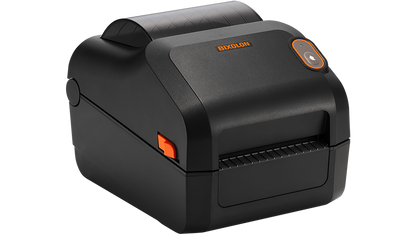

BIXOLON XD3-40d Direct Thermal Label Printer – Compact, Fast & Cost-Effective
The BIXOLON XD3-40d is a high-performance 4-inch desktop label printer designed for fast-paced environments like retail, logistics, healthcare, and warehousing. Using direct thermal technology, it eliminates the need for ribbons, reducing operational costs and simplifying maintenance.
With print speeds up to 5 inches per second, USB connectivity, and support for multiple media types, the XD3-40d delivers crisp, reliable labels for shipping, inventory, and product identification. Its user-friendly design includes tool-free maintenance, adjustable paper guides, and drop-in media loading—making it ideal for businesses seeking efficiency and durability.
Key Features:
- Direct thermal printing – no ribbon required
- Fast print speeds up to 5 ips (127 mm/sec)
- 203 dpi resolution for sharp, clear labels
- Supports media widths from 15 to 118 mm

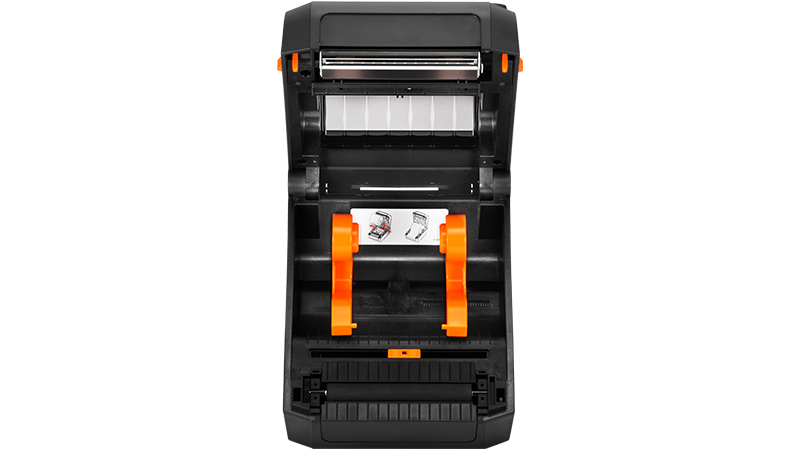

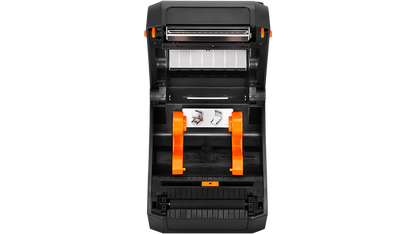

- Easy paper loading with adjustable guides

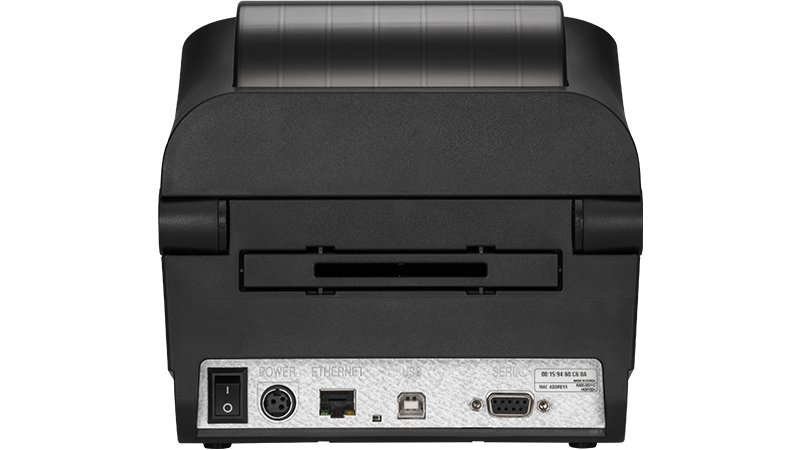

- USB interface, Ethernet & Serial
- Compatible with major programming languages (SLCS™, BPL-Z™, BPL-E™, BPL-D™)
- ENERGY STAR® certified for eco-efficiency
- Toolless maintenance of print head and roller
- Optional peeler and external paper supply
Ideal For: Retail price tags, shipping labels, inventory tracking, patient wristbands, and barcode labeling in logistics and healthcare.
Technical Specifications – XD3-40d (Direct Thermal)
|
Category |
Specification |
|---|---|
|
Print Method |
Direct Thermal |
|
Print Speed |
Up to 5 ips (127 mm/sec) |
|
Print Resolution |
203 dpi |
|
Max Print Width |
104 mm |
|
Max Print Length |
1,000 mm |
|
Sensors |
Transmissive (Fixed), Reflective (Adjustable), Head Open |
|
Media Types |
Gap, Black Mark, Notch, Continuous, Fan-Fold |
|
Media Width |
15 ~ 118 mm |
|
Media Roll Diameter |
Up to 127 mm |
|
Media Thickness |
0.06 ~ 0.20 mm |
|
Supply Method |
Easy paper loading |
|
Inner Core Diameter |
25.4 ~ 38.1 mm |
|

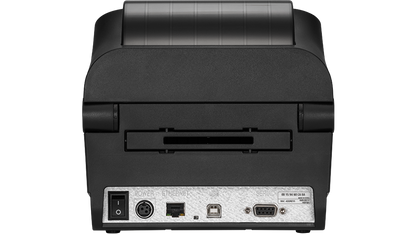

Interface |
Standard: USB + Serial + Ethernet |
|
Memory |
64 MB SDRAM, 128 MB Flash |
|
Dimensions (WxDxH) |
181 × 222 × 168 mm (7.13 × 8.74 × 6.62 inch) |
|
Weight |
1.7 kg (3.75 lbs.) |
|
Power Supply |
External Adaptor 100–240V AC, 50/60Hz |
|
Operating Temp |
0 ~ 40°C (32 ~ 104°F) |
|
Humidity Range |
Operating: 10 ~ 80% RH; Storage: 10 ~ 90% RH |
|
Software Support |
Windows/Linux/Mac drivers, OPOS, Bartender Ultralite, Label Artist-II™ |
|
SDKs Available |
Windows SDK, Linux SDK |
|
Barcode Support |
1D: Code 39, Code 128, EAN-13, UPC-A, etc. |
|
Fonts & Graphics |
Bitmap, Scalable, Unicode (UTF-8, UTF-16), User-defined logos & formats |
|
Certifications |
ENERGY STAR®, RoHS compliant |
|
Warranty |
2 Year Manufacturer’s Carry-In warranty |
