Epson TM-U220B Impact Receipt Printer – LAN Interface
Epson TM-U220B Impact Receipt Printer – LAN Interface
Couldn't load pickup availability
Epson TM-U220B Impact Receipt Printer – LAN Interface for Networked POS Efficiency

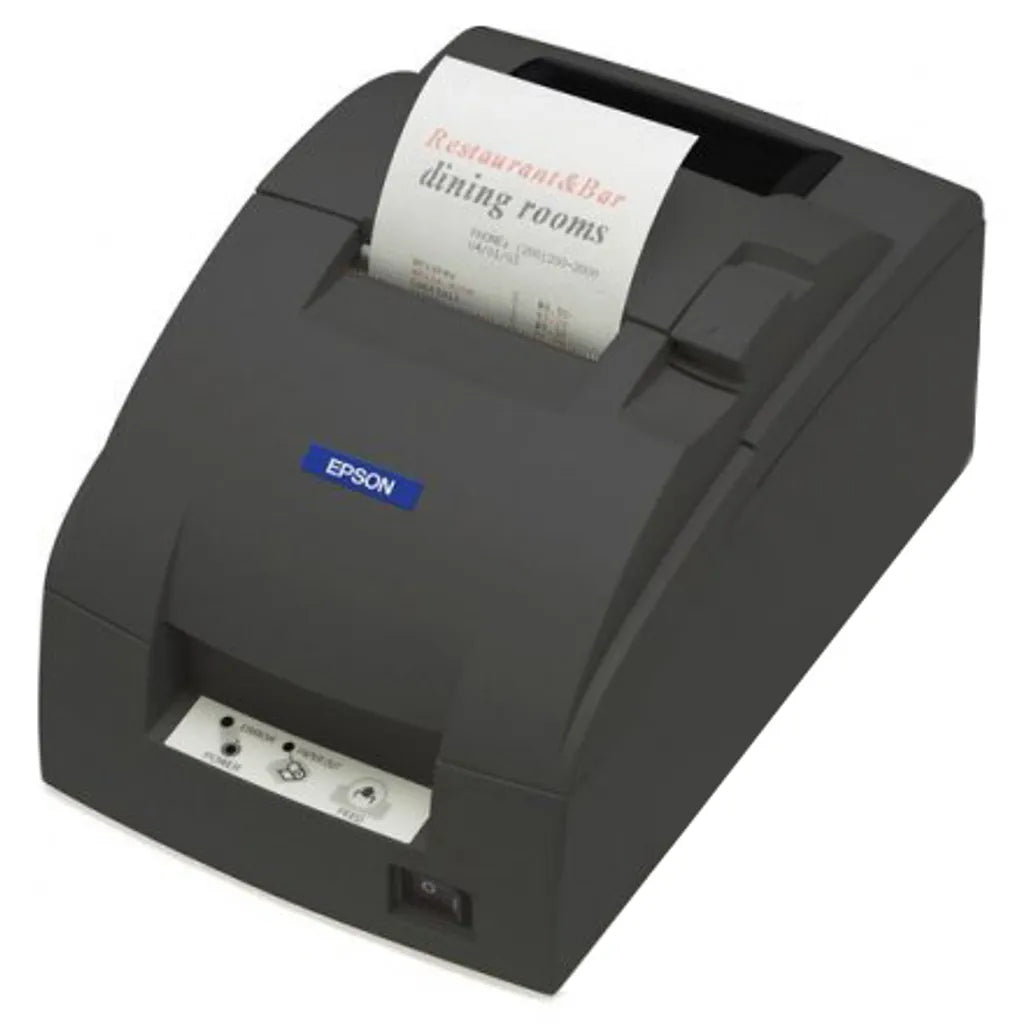

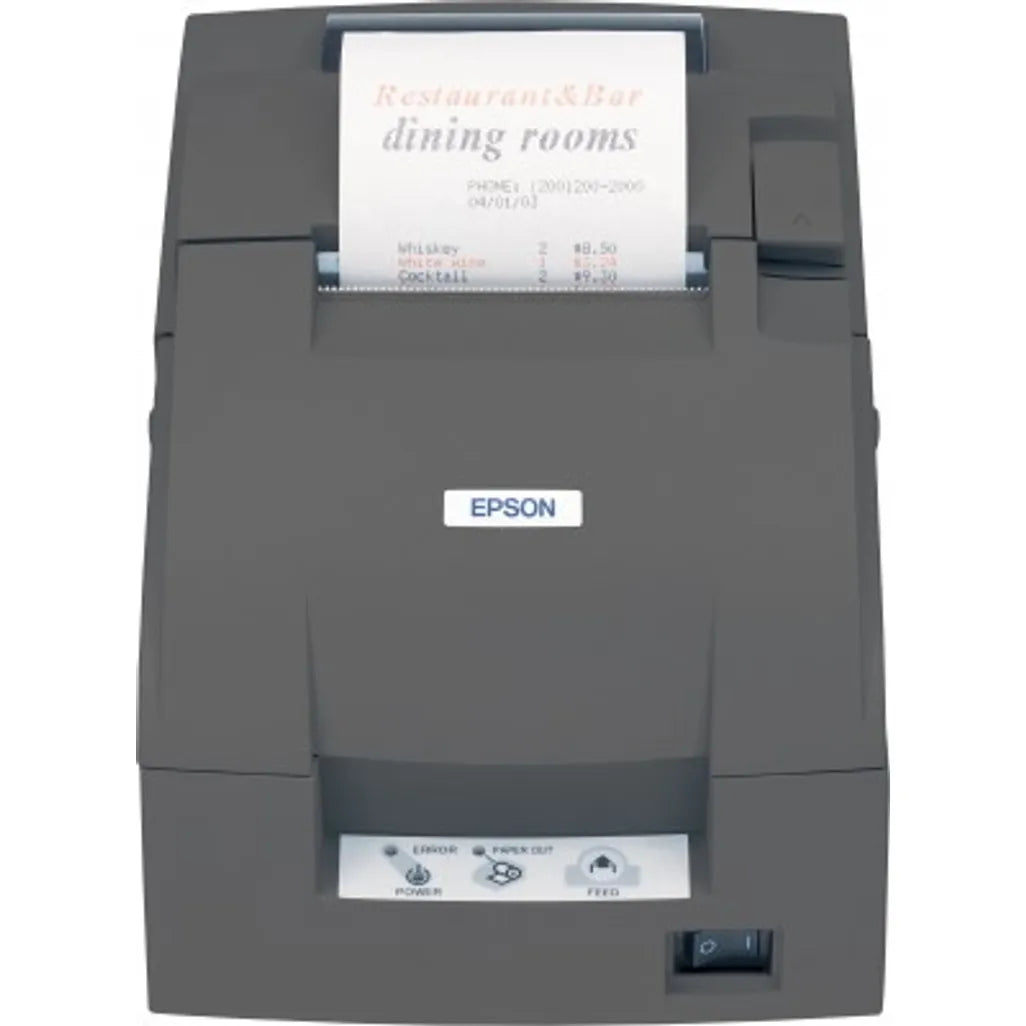

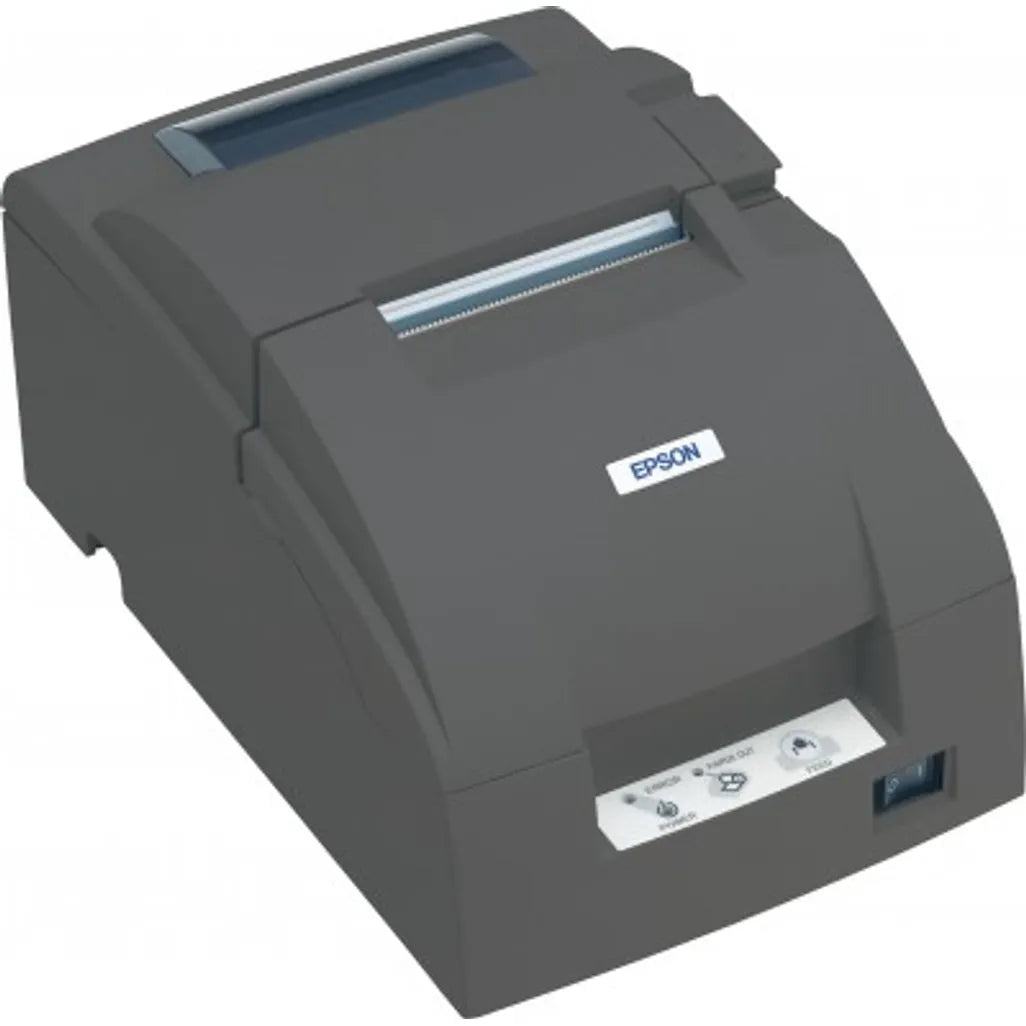

The Epson TM-U220B (LAN Interface) is a robust and reliable impact dot matrix receipt printer designed for high-demand environments like restaurant kitchens, retail counters, and hospitality venues. With Ethernet LAN connectivity, it integrates seamlessly into networked POS systems, enabling fast and stable receipt printing across multiple terminals.
This model features auto-cutting, two-color printing, and right-side-up output, making it ideal for kitchen orders and promotional receipts. It supports multiple paper widths, drop-in paper loading, and is mPOS-friendly, compatible with iOS, Android, and Windows devices via Epson’s ePOS-Print technology.
Built to last, the TM-U220B offers ENERGY STAR® certification, a 2-year warranty, and Epson’s renowned reliability—making it a smart investment for any business.
Key Features:
- Ethernet LAN interface for networked POS integration
- 9-pin impact dot matrix printing for durable receipts
- Auto-cutter (full or partial) for clean separation
- Two-color printing (black/red) for highlighting offers or exceptions
- Fast print speeds up to 6.0 lines per second
- Supports paper widths of 58mm, 70mm, and 76mm
- Drop-in paper loading for quick refills
- Right-side-up printing for kitchen readability
- ENERGY STAR® qualified for eco-efficiency
- 2-Year Limited Warranty
Perfect For: Restaurants, cafés, retail chains, and service counters needing reliable, networked receipt and order printing.
Technical Specifications – TM-U220B (LAN)
|
Feature |
Specification |
|---|---|
|
Model |
Epson TM-U220B (LAN Interface) |
|
Print Method |
9-pin serial impact dot matrix |
|
Print Speed |
Up to 6.0 lps (30 columns, 16 cpi); 4.7 lps (40 columns, 16 cpi) |
|
Print Fonts |
7×9 / 9×9 |
|
Column Capacity |
42 / 42 or 33 / 35 columns |
|
Character Size |
1.2 × 3.1 mm / 1.6 × 3.1 mm |
|
Character Set |
95 Alphanumeric, 37 International, 128×123 Graphic |
|
Supported Languages |
Traditional/Simplified Chinese, Thai, Japanese, Korean |
|
Paper Widths |
58mm, 70mm, 76mm |
|
Paper Diameter |
83mm |
|
Paper Thickness |
0.06 to 0.085mm |
|
Copy Capability |
One original + one copy |
|
Ribbon Type |
ERC-38 (Black or Black/Red) |
|
Ribbon Life |
Black: 3 million characters; B/R: 1.5 million (black), 750k (red) |
|
Reliability |
MTBF: 180,000 hours; MCBF: 18 million lines |
|
Interface |
Ethernet LAN (10/100Base-T/TX) |
|
Data Buffer |
40 bytes or 4KB |
|
Power Supply |
24 VDC ± 7% |
|
DKD Function |
2 drivers |
|
Dimensions (W×D×H) |
160 × 248 × 138.5 mm |
|
Weight |
2.5 kg |
|
Color Options |
Epson Dark Gray (EDG), Epson Cool White (ECW) |
|
Certifications |
ENERGY STAR®, RoHS, FCC Class A, CE, UL, CSA, TÜV |
|
Warranty |
2-Year Manufactures Carry-In Warranty |
|
In the Box |
TM-U220B printer, ribbon cassette, paper roll, power switch cover, Adaptor C, user manual |
