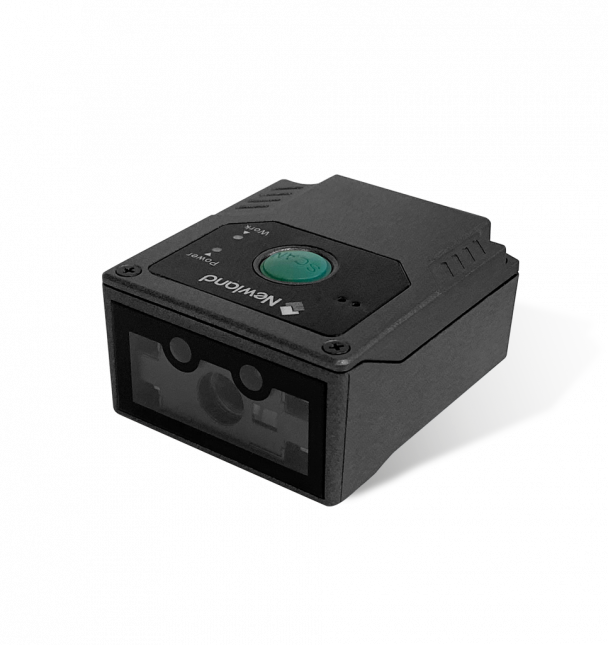

Newland FM430 Barracuda Stationary Scanner

Meet the cutting-edge fixed mount scanner—an all-around powerhouse. With its high-resolution megapixel camera, it effortlessly scans both 1D and 2D barcodes at lightning speed.

The FM430 Barracuda—a fixed mount scanner that’s redefining efficiency. Whether you’re a seasoned pro or a barcode-scanning novice, this device has you covered. Here’s why it stands out:

• Megapixel Camera: The FM430 Barracuda boasts a high-resolution megapixel camera. It doesn’t discriminate—whether it’s a tiny 1D barcode or a complex 2D code, it scans them all with remarkable speed and ease.


• Snappy Performance, Anywhere: Thanks to its IR sensor and light sensor combo, the FM430 keeps things moving—even in dimly lit environments. Barcodes are always well-lit, ensuring accurate scans.


• Handsfree or Manual: Companies seeking automation can set up handsfree scanning, while those who prefer control can use the manual trigger button.


• Intelligent Programming: The FM430’s sensors dynamically adjust supplementary lighting based on reflected light from the barcode. It’s even adept at scanning mobile phone screens. Plus, you can fine-tune it for close or long-distance reads.


• Outdoor Toughness: With an IP54 rating, this scanner fearlessly faces the elements—dust and moisture won’t faze it.


• Optional Bright Laser Aimer: For the ultimate user-friendly experience, the FM430 Barracuda offers an optional red cross laser—a beacon for even the greenest of users.

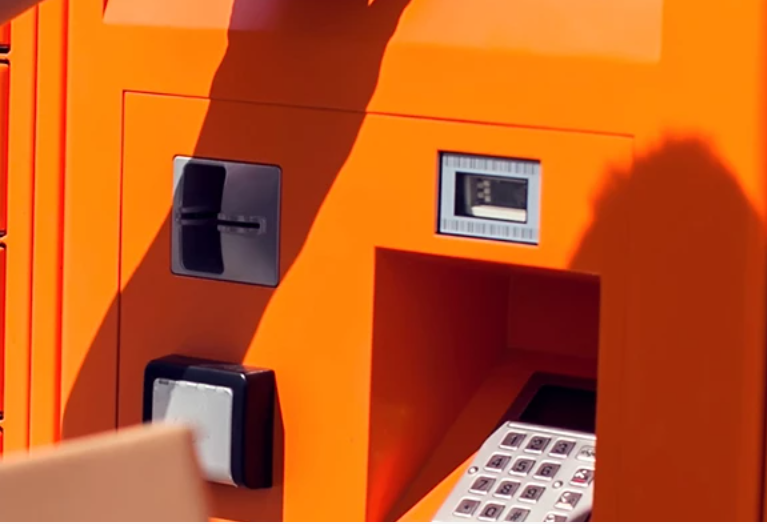

• Versatile Applications: Picture self-service kiosks in e-commerce, express delivery services, access control, loyalty programs, mobile payments, event ticket redemption, gaming cash-outs, postal services, transport boarding passes, parking ticket machines, and production lines—all benefiting from the FM430 Barracuda’s prowess.

Technical Specifications

Data Capture:

• 1D Symbologies:
  • EAN-13
  • EAN-8
  • UPC-A
  • UPC-E
  • Code 128
  • Code 39
  • Codabar
  • UCC/EAN 128
  • RSS
  • ITF
  • ITF-14
  • ITF6
  • Standard 25
  • Matrix 25
  • COOP 25
  • Industrial 25
  • Plessey
  • MSI Plessey
  • Code 11
  • Code 93
  • Code 49
  • Code 16K
• 2D Symbologies:
  • PDF417
  • QR Code
  • Data Matrix
  • AZTEC
  • CSC
  • Maxicode
  • Micro QR
  • Micro PDF417
  • GM
  • Code One

Image Sensor: CMOS 1280 × 800

Aiming:

• 650nm Laser diode or 518nm green LED

Illumination: White LED

Scan Modes:

• Sense mode
• Continuous mode
• Level mode
• Pulse mode

Scan Rate: 60 frames per second

Depth of Field:

• EAN 13 (13mil): 55-360mm
• Code 39 (5mil): 70-180mm
• PDF417 (6.67mil): 55-160mm
• DataMatrix (10mil): 50-170mm
• QR (15mil): 40-210mm

Field of View:

• Horizontal: 51°
• Vertical: 32°

Scan Angle:

• Roll: 360°
• Pitch: ±55°
• Skew: ±55°

Minimal Print Contrast: 25%

Performance:

• Processor: 1GHz, X1500

Physical:

• Current @ 5VDC Operating:
  • Typical: 276.8mA
  • Maximum: 322.7mA
• Current @ 5VDC Standby: 83.3mA
• Dimensions (mm): 41.5(W) × 49.5(D) × 24.3(H)
• Input Voltage: 5VDC ±5%
• Interfaces: RS-232, USB
• Material: PC, ABS
• Notifications: Beep, LED indicator
• Power Supply Input: DC5V, 1.5A
• Power Supply Output: AC100~240V, 50~60Hz
• Weight: 75g

Environmental:

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5%~95% (non-condensing)
• Electro Static Discharge (ESD):
  • ±14 kV (air discharge)
  • ±8 kV (direct discharge)
• Drop: 1.5m
• IP Rating: IP54

Software:

• Configuration Tools: EasySet

Certifications:

• Hardware:
  • FCC Part15 Class B
  • CE EMC Class B
  • RoHS
  • IEC60825
  • IEC62471
  • KC

Warranty: Standard 5 years Carry-In
