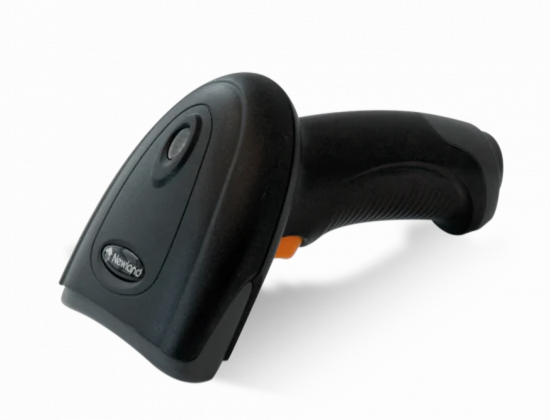

Newland HR11 Aringa 1D CCD Handheld Scanner - with USB Cable & Foldable Smart Stand.

The HR11 Aringa prioritizes operational streamlining, offering enhanced efficiency and operator comfort during intensive handheld scanning. Its compact, durable housing (with a 1.5m drop rate) weighs only 120g. The ergonomic design minimizes user fatigue, ensuring maximum comfort for everyday scanning tasks.

The HR11 Aringa is designed with operational efficiency and operator comfort in mind, making it an ideal choice for intensive handheld scanning tasks. Let’s explore its key features:

Compact and Ergonomic Design:

• The HR11 Aringa’s compact form factor ensures comfortable daily use.
• Weighing only 120g, it is lightweight and easy to handle.
• The ergonomic design minimizes user fatigue during prolonged scanning sessions.

Outstanding Scanning Performance:

• Equipped with a 2500-pixel linear imager, the HR11 Aringa delivers reliable scanning performance.
• It excels at reading 1D barcodes, whether printed on paper or displayed on screens.

Value for Money:

• Despite its impressive features, the HR11 Aringa remains affordable.
• Users can enjoy an excellent scanning experience without breaking the bank.

Versatile Application Scenarios:

• Retail environments benefit from its efficient barcode scanning capabilities.
• O2O (Online2Offline) applications can leverage the HR11 Aringa for seamless barcode recognition.
• Other scenarios include pharmacies, cosmetics and drug stores, smaller grocery outlets, tobacco kiosks, and ticketing booths.

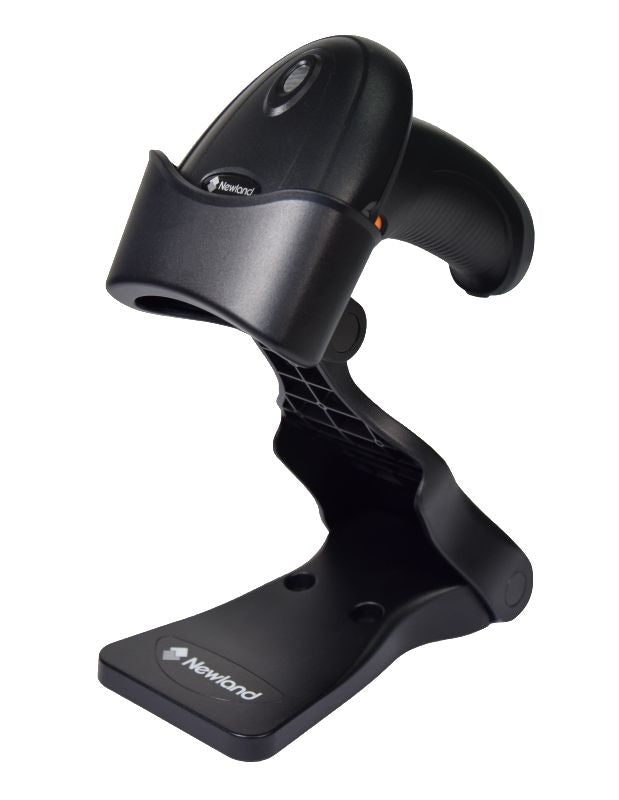

Foldable Smart Stand Option:

• Need hands-free scanning? The HR11 Aringa offers a foldable smart stand.
• Easily switch between handheld and hands-free modes as needed.

Technical Specification

Data Capture:

• Supports all major 1D symbologies, including AIM 128, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, COOP 25, Deutsche 12, Deutsche 14, EAN-8, EAN-13, Febraban, GS1-128, GS1 Databar (RSS), ISBN, ISSN, ITF-6, ITF-14, MSI-Plessey, Plessey, UPC-A, UPC-E, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, and Standard 2 of 5.
• Image Sensor: 2500-pixel linear imager
• Illumination: Red LED (620nm~630nm)
• Resolution: ≥3mil

Depth of Field:

• EAN 13 (13mil): 40mm-480mm
• Code 39 (5mil): 80-180mm
• Horizontal Field of View: 53°±2°
• Roll Scan Angle: 360°
• Pitch Scan Angle: ±60°
• Skew Scan Angle: ±70°
• Minimal Print Contrast: 20%

Physical Specifications:

• Current @ 5VDC (Operating): 70.4 mA (typical), 96.8 mA (max.)
• Current @ 5VDC (Standby): 57.6 mA
• Dimensions: 101mm (L) × 68mm (W) × 145mm (H)
• Input Voltage: 5VDC±5%
• Interfaces: RS-232, USB
• Notifications: Beep, LED indicator
• Power Consumption: 352mW (typical)
• Weight: 120g

Environmental Conditions:

• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 5%~95% (non-condensing)
• Electro Static Discharge (ESD): ±8 KV (direct discharge); ±16 KV (air discharge)
• Drop Rating: 1.5m
• IP Rating: IP42

Software:

• Configuration Tools: EasySet

Certifications:

• Hardware: FCC Part 15 Class B, CE EMC Class B, RoHS

Warranty:

• Standard warranty: 5 years
