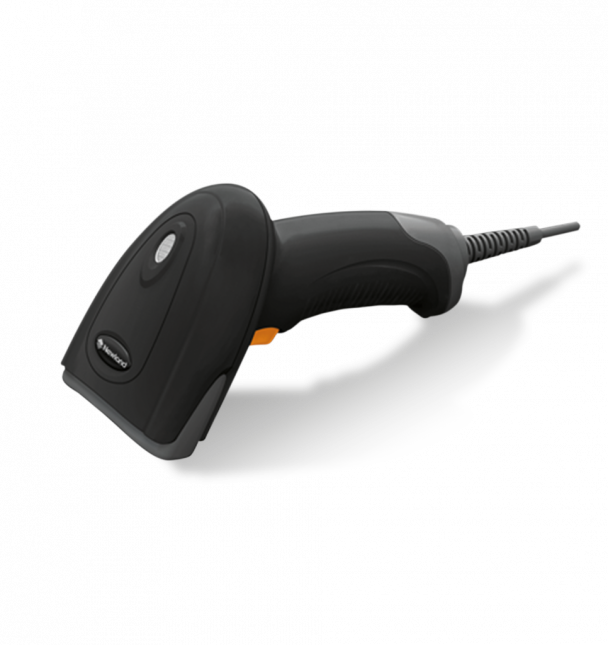

Newland HR22 Dorada II Corded Handheld Scanner

The HR22 Dorada II is designed for straightforward productivity and is well-suited for various applications. These include product traceability, purchase-sales-inventory management, ticket and voucher management, as well as office automation.

The HR22 Dorada II—an all-purpose 2D barcode reader that caters to entry-to-mid-level scanning applications. This versatile handheld scanner has made quite a splash, especially in industries and contexts where folks crave 2D scanning capabilities without breaking the bank. Let’s dive into its features:

• Supporting the Leap from 1D to 2D: The HR22 Dorada II is purpose-built to bridge the gap between 1D and 2D scanning. Imagine getting the power of a 2D scanner at a price point that previously only 1D scanners could achieve. It’s like finding a hidden treasure in the barcode jungle!


• Sleek Design for Any Setting: Picture this: a clean, unobtrusive design that feels right at home on a countertop. The adjustable stand not only saves space but also adds a touch of elegance. You can confidently place it alongside your point-of-sale equipment, making your workspace both functional and aesthetically pleasing.


• Aiming True with White Illumination: The HR22 Dorada II has upgraded its aim game. Thanks to white illumination, those red LED aimers are now even more conspicuous. No more guessing—this scanner lines up the code with precision, boosting user confidence. It’s like having a barcode whisperer in your hand.


• Built Tough, Ready for Action: With an IP42 rating, the HR22 Dorada II laughs in the face of dust and splashes. Plus, it’s drop-resistant up to 1.5 meters. So, whether it accidentally takes a tumble from your desk or countertop, it’ll bounce back like a champ.


• Unlocking More Codes with CPU Decoding: The Dorada II flexes its digital muscles with Newland CPU processor decoding. What does that mean? Improved data handling configurations and the ability to embrace additional barcode symbologies. From Italian Pharma codes (essential for pharmaceutical sales) to Aztec codes (common in boarding passes and retail loyalty programs), this scanner’s got you covered.

Remember, this scanner isn’t just a gadget; it’s a productivity sidekick. Whether you’re managing inventory, handling tickets, or streamlining office tasks, the HR22 Dorada II has your back!

Technical Specifications

Data Capture:

• 1D Symbologies:
  • Code 11, Code 128, Code 39, GS1-128 (UCC/EAN 128), AIM 128, ISBT 128, Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-8, EAN-13, ISBN/ISSN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 25, ITF6, ITF-14, Standard 25, China Post 25, MSI Plessey, Plessey, GS1 Databar (RSS).
• 2D Symbologies:
  • PDF417, Micro PDF417, Micro QR, QR Code, Data Matrix, Aztec.

Image Sensor:

• 640x480 CMOS

Aiming:

• Red LED (625nm)

Illumination:

• White LED

Depth of Field (Examples):

• EAN 13 (13mil): 50-260mm
• Code 39 (5mil): 50-115mm
• PDF417 (6.67mil): 50-120mm
• DataMatrix (10mil): 35-125mm
• QR (15mil): 30-170mm

Field of View:

• Horizontal: 45°
• Vertical: 34°

Scan Angle:

• Roll: 360° (QR 15mil)
• Pitch: ±55° (QR 15mil)
• Skew: ±55° (QR 15mil)

Minimal Print Contrast:

• 20%

Physical:

• Current @ 5VDC Operating: 190mA (typical), 201mA (max.)
• Current @ 5VDC Standby: 35mA
• Dimensions (mm): 145×101×68
• Input Voltage: 5VDC±5%
• Interfaces: RS-232, USB
• Notifications: Beep, LED indicator
• Power Consumption: 950mW (typical)
• Weight: 111g

Environmental:

• Operating Temperature: -20℃ to 60℃ (-4°F to 140°F)
• Storage Temperature: -40℃ to 70℃ (-40°F to 158°F)
• Humidity: 5% to 95% (non-condensing)
• Electro Static Discharge (ESD): ±15 kV (air discharge), ±8 kV (direct discharge)
• Drop: 1.2m
• IP Rating: IP42

Software:

• Configuration Tools: EasySet

Certifications:

• Hardware: FCC Part15 Class B, CE EMC Class B, RoHS

Warranty:

• Standard: 5 years Carry-In
