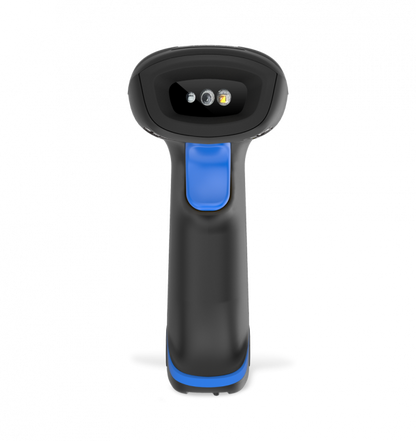

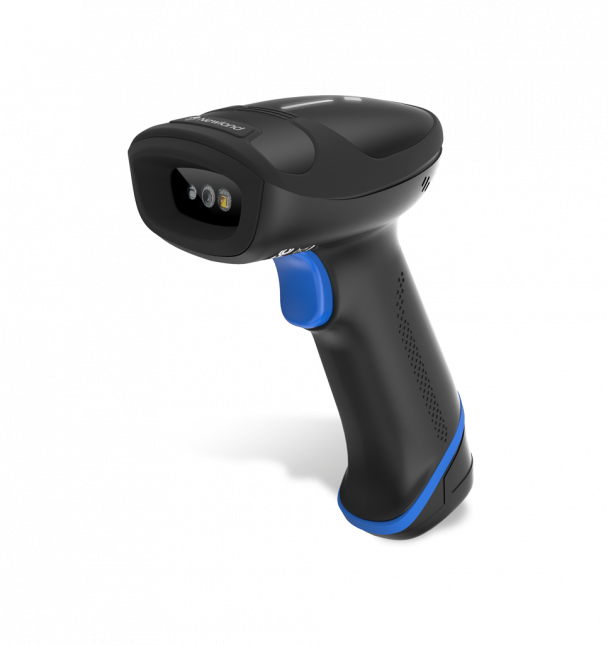

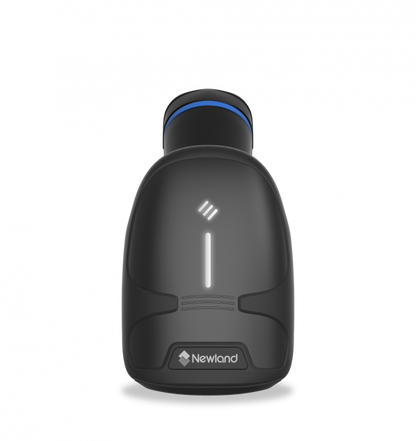

Newland HR33 Marlin Bluetooth Scanner with 2D Megapixel Sensor
Newland HR33 Marlin Bluetooth Scanner with 2D Megapixel Sensor
Couldn't load pickup availability

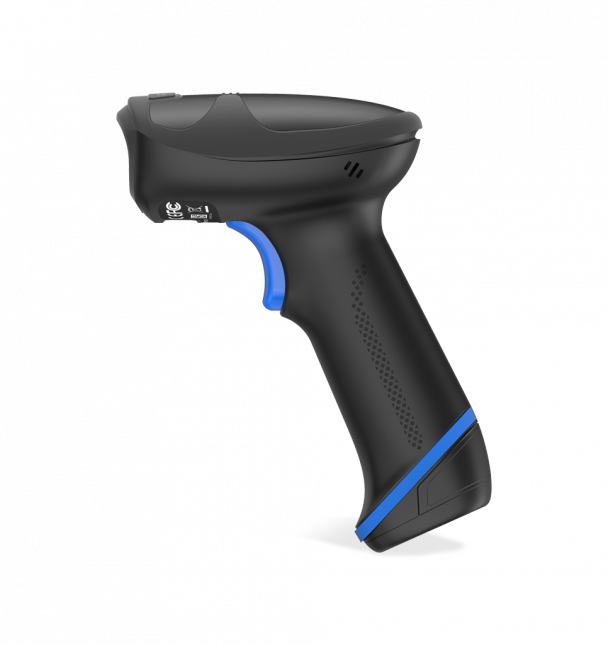

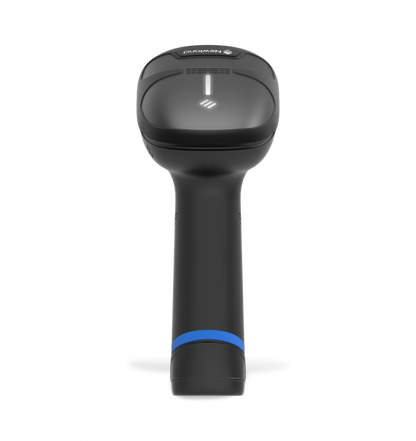

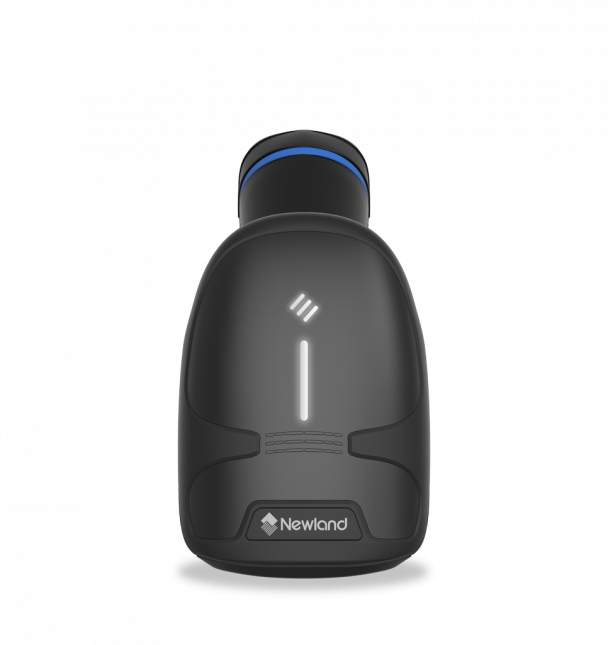

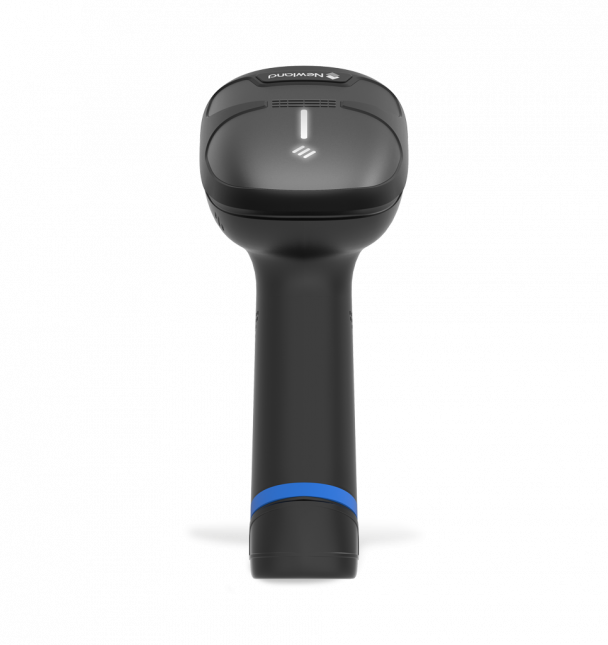

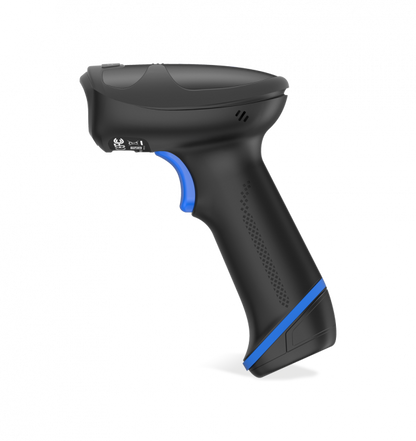

Newland HR33 Marlin Bluetooth Handheld Scanner – Precision, Power & Portability
The Newland HR33 Marlin Bluetooth is a high-performance 2D barcode scanner designed for fast, accurate data capture in retail, logistics, warehousing, and healthcare environments. Featuring a megapixel CMOS sensor, Bluetooth 5.0 connectivity, and advanced decoding technology, it scans even damaged or high-density barcodes with ease.
With a 100m wireless range, 15-hour battery life, and IP52-rated durability, the HR33 is built for uninterrupted productivity. Its replaceable 2600mAh battery, magnetic charging cradle, and support for real-time and batch scanning modes make it a versatile tool for any workflow.
Key Features:

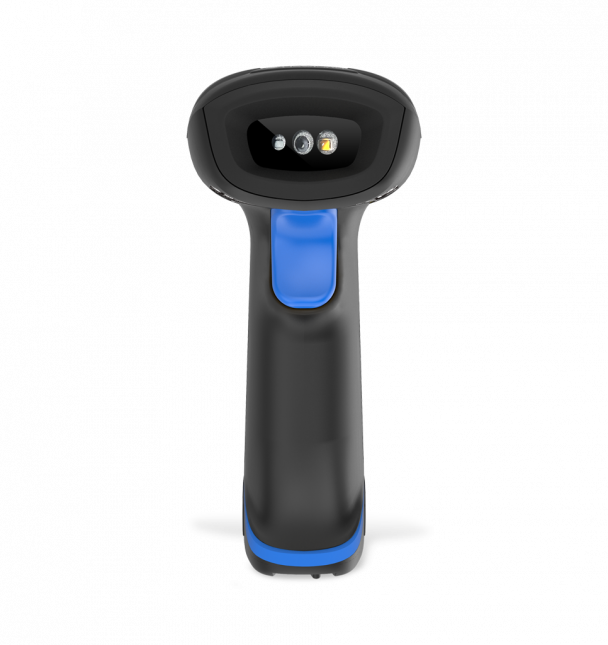

- Megapixel 2D CMOS sensor with laser aimer for high-precision scanning
- Bluetooth 5.0 with up to 100m wireless range
- Replaceable 2600mAh battery with up to 15 hours of continuous use
- Advanced Scripting & EasySet software for custom configuration
- Real-time scan & send or offline batch mode
- IP52-rated rugged design with 1.5m drop resistance

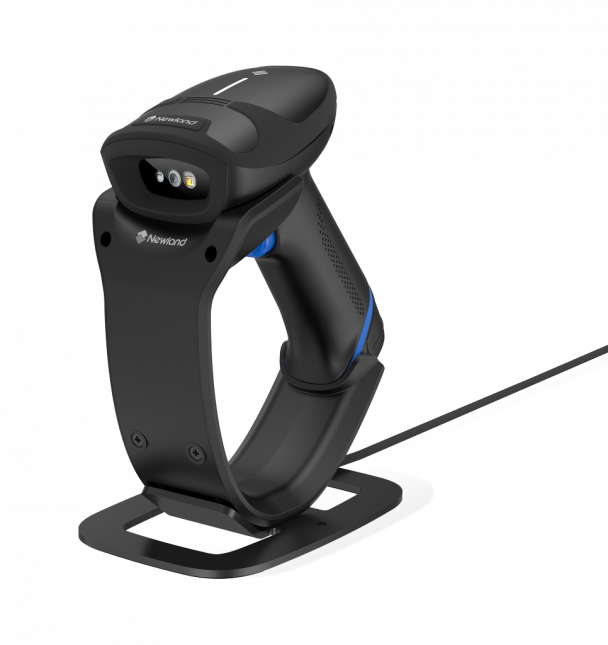

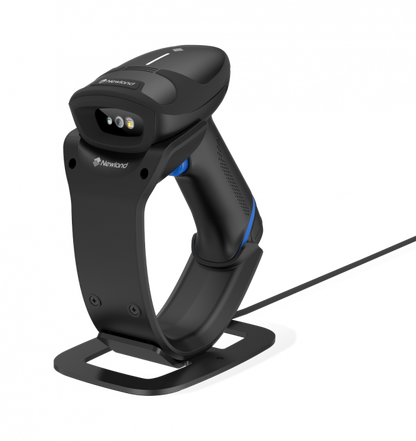

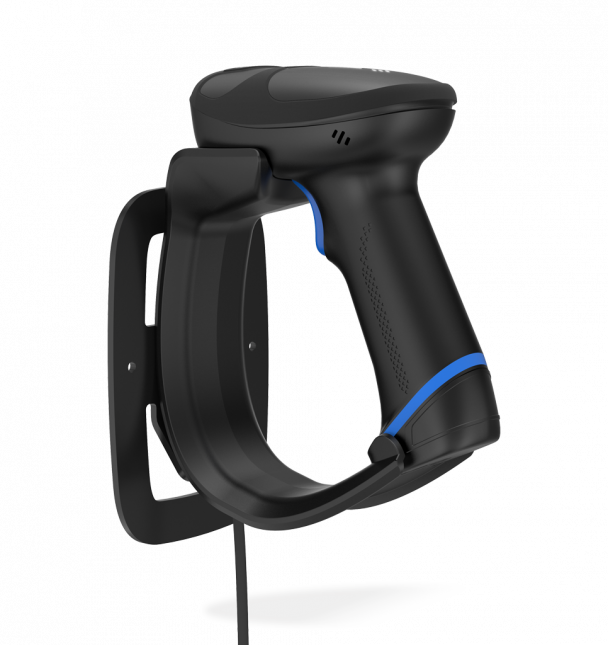

- Magnetic charging cradle for reliable connection
- Multi-indicator alerts: LED, beep, vibration
Technical Specifications
|
Feature |
Details |
|---|---|
|
Sensor |
1280 × 800 CMOS megapixel |
|
Barcode Types |
1D & 2D (QR, PDF417, Data Matrix, Aztec, OCR, etc.) |
|
Aiming & Illumination |
Laser aimer, white LED |
|
Resolution |
?3mil |
|
Depth of Field |
EAN-13: 40–535mm; Code 39: 50–230mm; PDF417: 45–215mm; DataMatrix: 30–245mm |
|
Field of View |
Horizontal: 48°, Vertical: 30° |
|
Scan Angles |
Roll: 360°, Pitch: ±60°, Skew: ±65° |
|
Print Contrast |
?15% |
|
Battery |
2600mAh lithium-ion, replaceable |
|
Battery Life |
?15 hours (scan every 6 seconds) |
|
Charge Time |
?6 hours |
|
Connectivity |
Bluetooth 5.0, USB (Type A) |
|
Wireless Range |
?100m (open space) |
|
Communication Modes |
Real-time, asynchronous, batch |
|
Memory |
?16,384 code entries (60+ bytes each) |
|
Notifications |
Beep, LED, vibration |
|
Dimensions (Scanner) |
117.5 × 87.5 × 144 mm |
|
Dimensions (Cradle) |
140 × 90 × 144.5 mm |
|
Weight |
Scanner: 210g; Cradle: 340.5g |
|
Operating Temp |
-10°C to 50°C |
|
Storage Temp |
-40°C to 70°C |
|
Humidity |
5%–95% (non-condensing) |
|
Drop Resistance |
Scanner: 1.5m; Cradle: 1.2m |
|
IP Rating |
IP52 |
|
Software |
EasySet, Advanced Scripting |
|
Certifications |
CE, FCC, RoHS, IEC62471, IEC60825 |
|
Warranty |
5-Year Manufacturer’s Carry-In Warranty |
