Newland MT93 Megaterra Mobile Computer

The MT93 Megattera Pro, operating on Android 13 OS, features a user-friendly interface and a rugged yet slim design

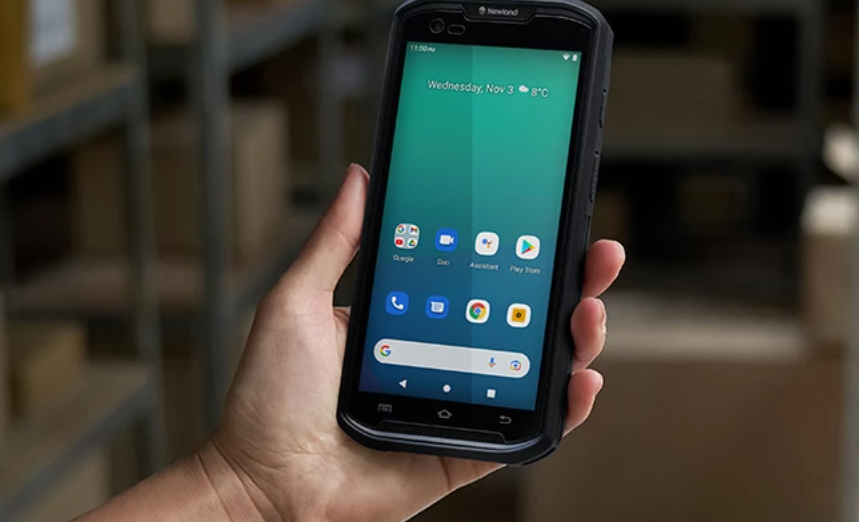

The MT93 Megattera Pro is designed to excel in demanding environments like warehouses, retail outlets, events, and hospitality venues. Here’s a detailed look at its features:

Enhanced Comfort and Performance

• Angled Scan Engine: Reduces discomfort and strain from prolonged scanning.
• Octa-Core Processor: Ensures smooth performance throughout a full work shift.
• WiFi 6 and 4G: Provides steady, fast, and secure connectivity even in busy multi-user environments.

WiFi 6 Powered Performance

• Ideal for Busy Environments: Manages a large number of users efficiently, minimizing interruptions.
• Superior Data Speeds and Efficiency: Allows you to concentrate on critical tasks without connectivity issues.

Key Features

WiFi 6 Generation:

• Improved speed and security for data transmission within four-wall applications.
• Fast roaming and increased bandwidth to stay connected in crowded wireless environments.
• Backward compatible with legacy WiFi infrastructures.

Powerful Performance:

• 2.2GHz octa-core processor and 4GB of RAM for effortless multitasking.
• Runs on Android 13 with GMS for enhanced security and operational efficiency.

Intuitive and Comfortable Design:

• Lightweight and rugged with a user-friendly 5.5-inch capacitive touchscreen.
• Angled scan engine minimizes fatigue and discomfort during prolonged scanning activities.

High-Precision Barcode Scanning:

• High-resolution megapixel scan engine for swift and accurate scanning.
• Acuscan feature ensures correct barcode scanning even when barcodes are closely placed.

Uninterrupted Productivity:

• 5000mAh battery provides up to 10 hours of uninterrupted use.
• Easily switchable battery for continuous workflow and reduced downtime.

Built to Last:

• IP67 rating and drop test certification from heights up to 1.5 meters ensure durability in challenging environments.

The MT93 Megattera Pro combines advanced functionality with a user-centric design, making it a reliable choice for various demanding work environments.

Technical Specifications

Data Capture

• 1D: All major 1D symbologies
• 2D: All major 2D symbologies
• Image Sensor: 1280 x 800 CMOS
• Aiming: Laser Diode
• Illumination: White LED (625±10nm)
• Scan Modes: Trigger Mode
• Scan Rate: 60 frames per second
• Depth of Field EAN 13 (13mil): 70mm-610mm
• Depth of Field Code 39 (5mil): 110mm-290mm
• Depth of Field PDF417 (6.7mil): 110mm-230mm
• Depth of Field DataMatrix (10mil): 110mm-260mm
• Depth of Field QR (15mil): 55mm-410mm

Performance

• Operating System: Android 13 GMS
• Processor: 2.2GHz, octa-core 64-bit processor (MT8781), 2A76@2.2GHz, 6A55@2GHz
• Memory RAM: 4GB
• Memory Flash: 64GB

Physical

• Battery Type: 3.85V, 5000mAh
• Camera:
  • Front: 5 megapixels

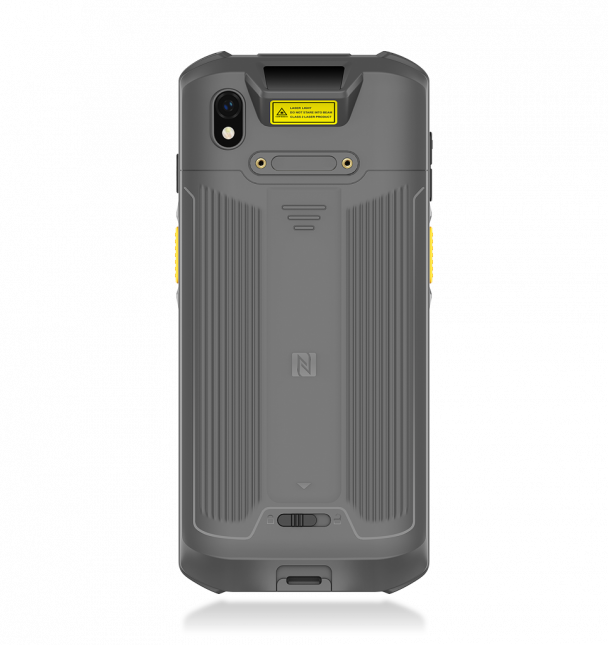

  • Rear: 13 megapixels, auto focus, with LED flashlight
• Dimensions (mm): 159(L) × 74(W) × 15.9(H)

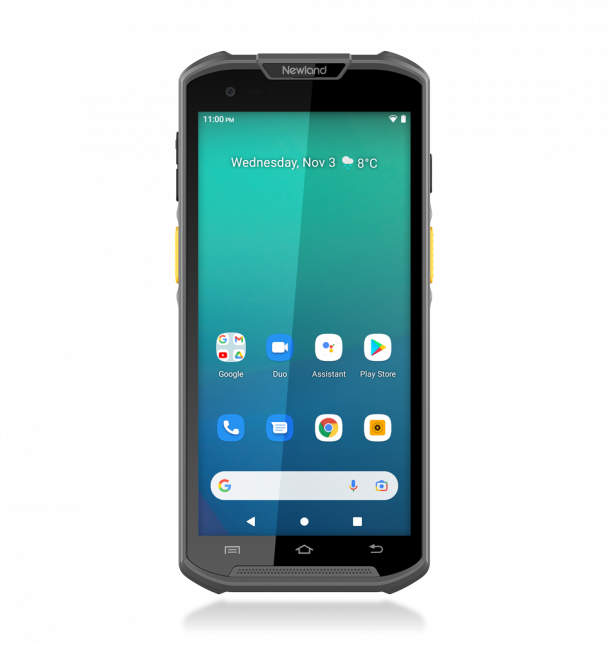

• Display: 5.5” (720×1440), multi-point capacitive touch screen with Gorilla Glass; Brightness (max. 400 Nits)
• Expansion Slot: Micro SD Card (max 256GB), 2 PIN contacts support Pistol grip

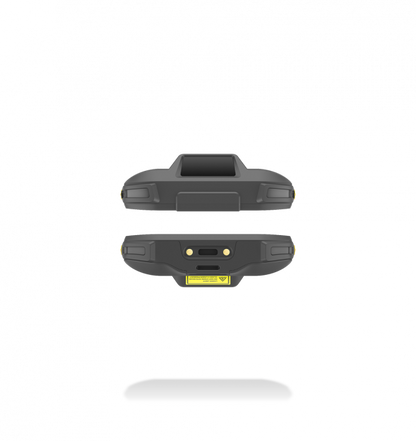

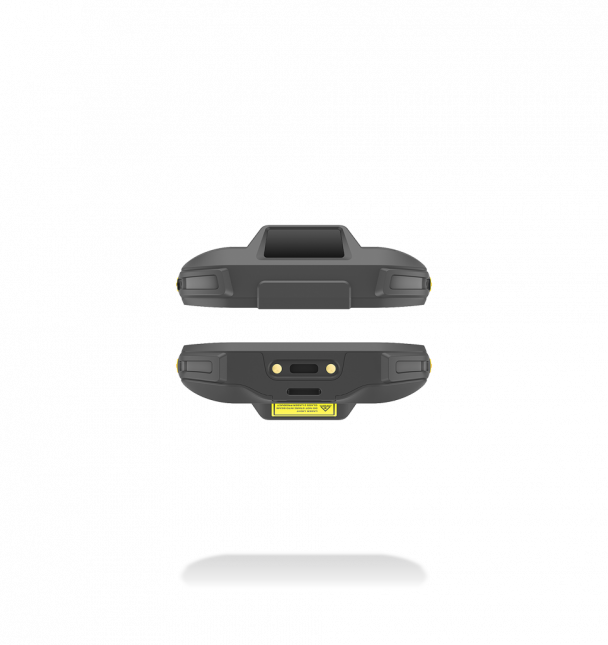

• Interfaces: USB Type-C, charging contacts on the bottom, supports headphones
• Keypad:
  • Virtual on-screen buttons: Menu, Home, Back

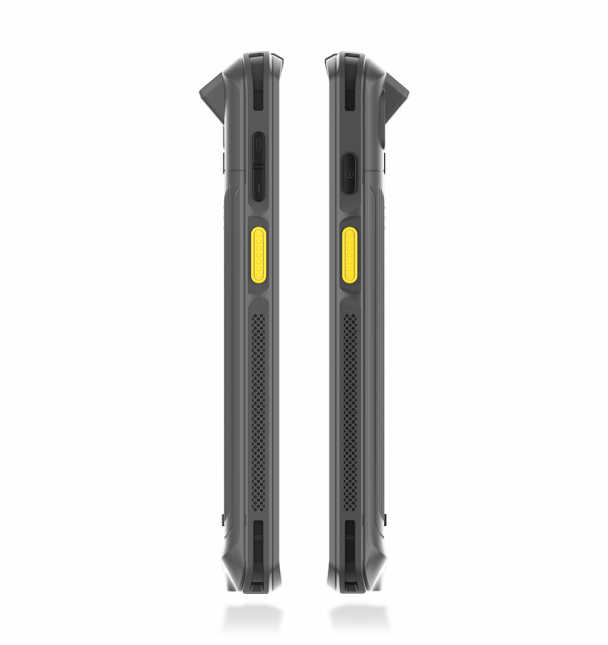

  • Physical buttons: Left and right Scan keys, Volume +/-, Power
• Microphone: Dual microphones, supports noise reduction
• Notifications: Vibrator, speaker (8R, 1W 10cm, 103dB) and multi-color LEDs
• Power Supply Input: AC100~240V, 50~60Hz, 18w fast charge
• Power Supply Output: DC5V/7V/9V, 2A
• Sensors: Light & Proximity sensor, Gravity sensor, Gyroscope, Electronic compass
• SIM: Nano+Nano or Nano+TF
• Weight: 277g (including battery)

Wireless

• WAN RADIO:
  • 2G: 850/900/1800/1900MHz
  • 3G: WCDMA (B1, B2, B5, B8), CDMA: 1X EVDO (BC0)
  • 4G: TDD-LTE (B34, B38, B39, B40, B41), FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)
• WLAN RADIO: WIFI 6 802.11 a/b/g/n/ac/ax/k/v/r, support 2.4G and 5G dual frequency
• WPAN RADIO: Bluetooth 5.2 BLE backward compatibility
• NFC: 13.56MHz RFID: ISO14443A/B, MIFARE, FeliCa, NFCForumTags, ISO15693
• GPS: GPS (AGPS), GLONASS

Environmental

• Operating Temperature: -20? to 55? (-4°F to 131°F)
• Storage Temperature: -40? to 70? (-40°F to 158°F)
• Humidity: 5% to 95% (non-condensing)
• Electro Static Discharge (ESD): ±15 kV (Air discharge), ±8 kV (Direct discharge)
• Drop: 1.5m drops to concrete (for six sides, one drop per side)
• IP Rating: IP67

Accessories

• Standard: Protective case, USB-C cable, battery, screen protector, hand strap, and multiplug adapter

Warranty

• Standard: 2 Year Manufacturers Carry-In Warranty
