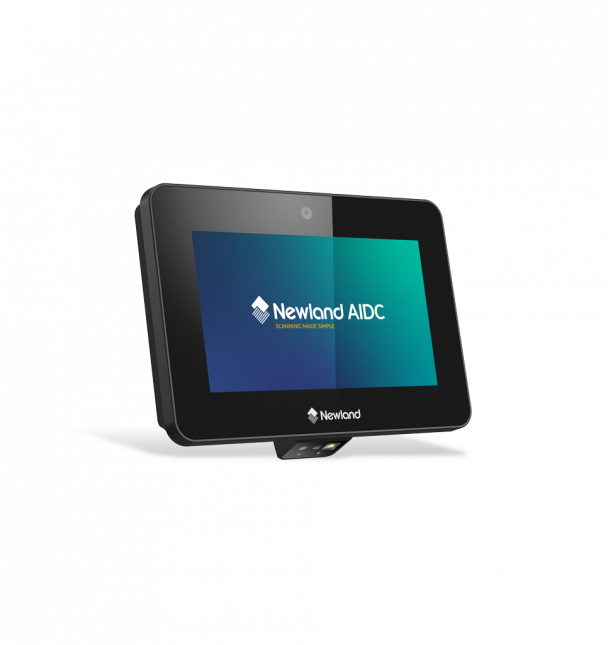

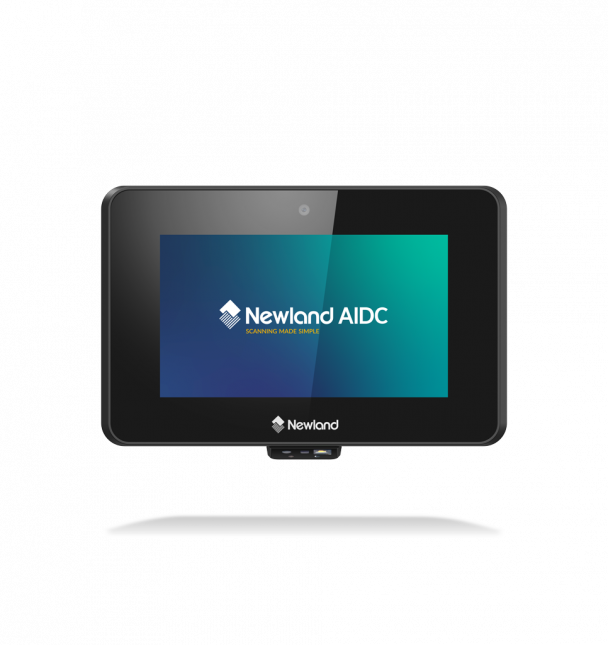

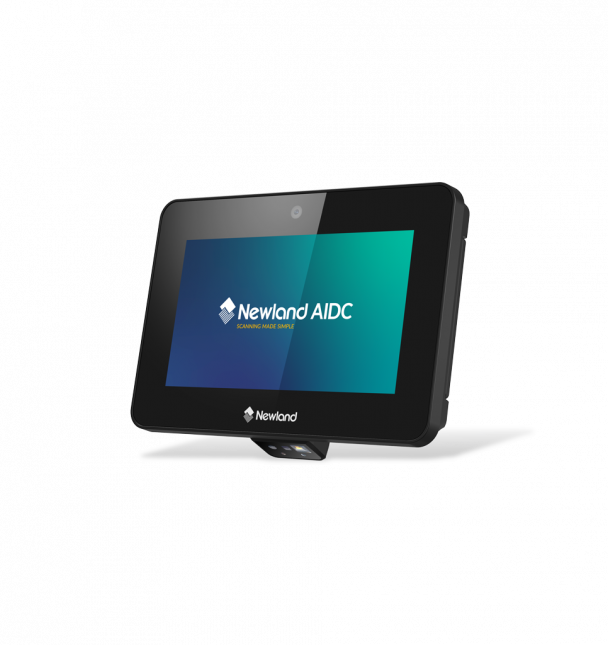

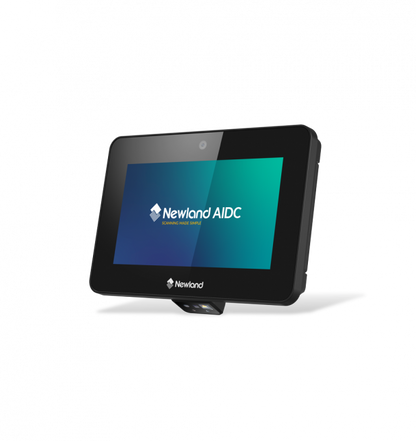

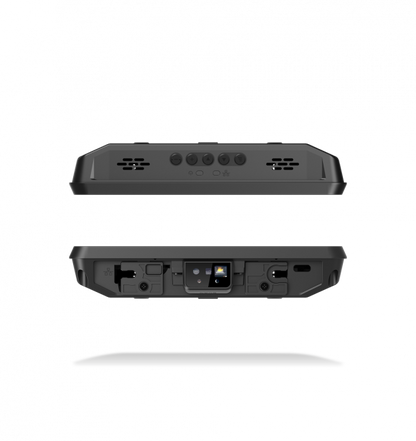

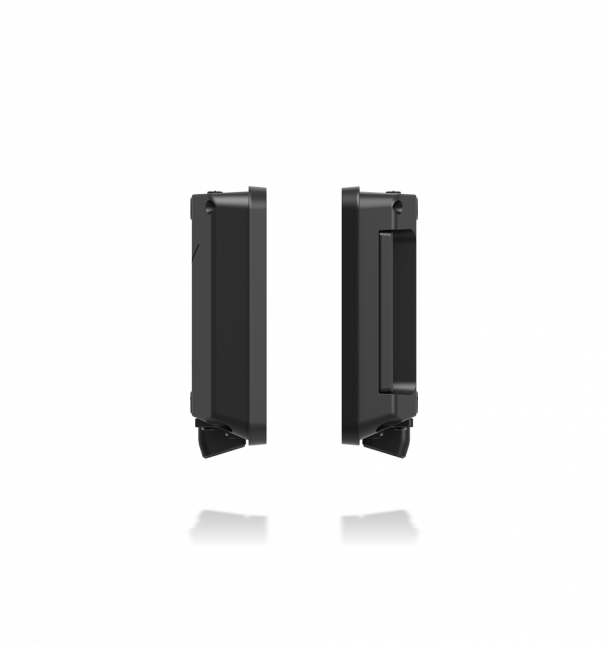

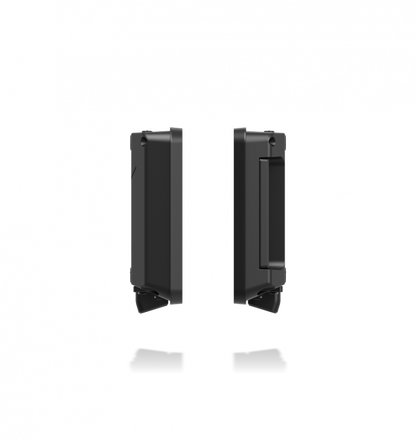

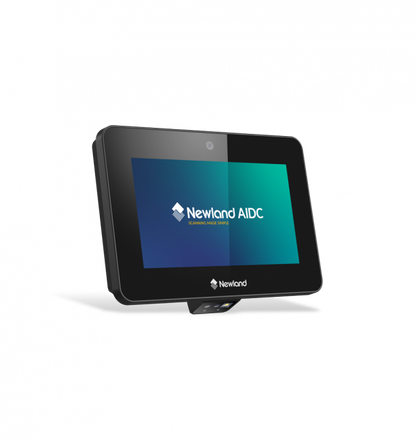

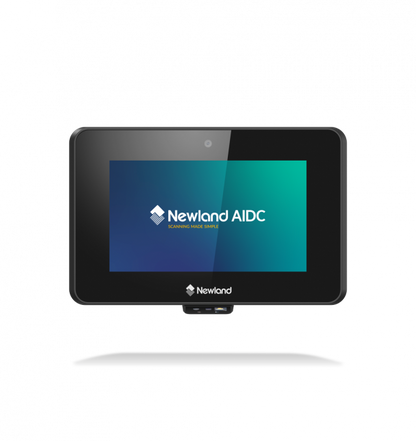

Newland NQuire 500 Skate II – Compact, Powerful & Built for Self-Service

The Newland NQuire 500 Skate II (NLS-NQUIRE500-W4-SL) is a compact, high-performance micro kiosk designed for retail, hospitality, healthcare, and industrial environments. Equipped with a 2D CMOS megapixel imager with laser aimer, it delivers fast and accurate barcode scanning — even on damaged labels or smartphone screens.

Powered by Android 13, a 2.0GHz octa-core processor, 4GB RAM, and 64GB storage, the NQuire 500 Skate II offers smooth performance for customer-facing applications, price checking, loyalty programs, ticket validation, and workforce management.

Its 5-inch capacitive touchscreen, PoE support, WiFi dual-band, Bluetooth 5.2, 4G, and Ethernet RJ45 connectivity make it extremely versatile and easy to deploy. With VESA 75 mount compatibility, it installs seamlessly on walls, shelves, counters, or kiosks.

Built with an IP54-rated front panel and GPIO expansion, the NQuire 500 Skate II is a future-proof micro kiosk ready for any self-service or data-capture workflow.

Key Features

• 2D Megapixel CMOS Imager with Laser Aimer – High-precision scanning for 1D & 2D barcodes.
• Android 13 OS – Modern, secure, and compatible with enterprise apps.
• 5" Capacitive Touchscreen – Bright, responsive display for customer interaction.
• 2.0GHz Octa-Core Processor + 4GB RAM + 64GB Flash – Smooth performance for kiosk applications.
• WiFi (2.4G/5G), Bluetooth 5.2, 4G, Ethernet RJ45 – Flexible connectivity options.
• Power-over-Ethernet (PoE) – Simplified installation with single-cable power + data.
• Front Camera (8MP) – Ideal for ID capture, facial recognition, or staff check-ins.
• IP54 Front Protection – Resistant to dust and splashes.

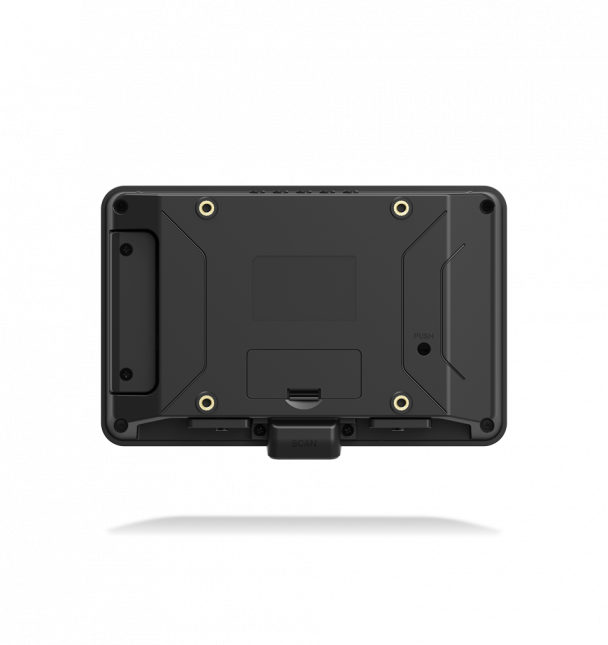

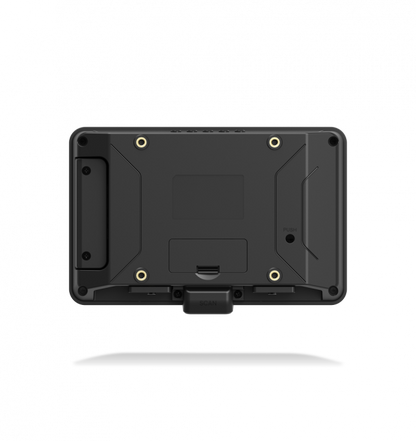

• VESA 75 Mounting – Easy installation on walls, shelves, or kiosks.

What’s in the Box

• Newland NQuire 500 Skate II Micro Kiosk
• Power adapter (12V @ 3A)
• USB-C cable
• Wall mounting kit
• Quick start guide

Technical Specifications

General

Model	NLS-NQUIRE500-W4-SL
Operating System	Android 13
Processor	2.0GHz Octa-Core 64-bit
Memory	4GB RAM
Storage	64GB Flash + MicroSD (up to 128GB)

Display

Size	5" capacitive touchscreen
Resolution	854 × 480 (FWVGA)

Scanning

Engine	2D Megapixel CMOS Imager
Aimer	Laser diode aimer
Supported Codes	All major 1D & 2D symbologies
Depth of Field	EAN-13: 70–610mm; Code 39: 110–290mm; QR: 55–410mm

Connectivity

Wireless	WiFi 802.11 a/b/g/n/ac (2.4G & 5G), Bluetooth 5.2, 4G LTE
Wired	USB-C, Ethernet RJ45 (PoE supported)
Expansion	2× GPIO, 1× expansion slot, MicroSD slot

Camera & Sensors

Front Camera	8MP
Sensors	Gravity sensor, infrared sensor

Audio

Speakers	Dual 1.5W speakers
Microphone	Built-in microphone

Power

Power Input	12V @ 3A
PoE	IEEE 802.3 af/at supported

Rugged Design

Ingress Protection	IP54 (front panel)
Operating Temp	-10°C to 50°C
Storage Temp	-20°C to 60°C
Humidity	5%–90% non-condensing
ESD	±12kV air, ±6kV contact

Dimensions & Weight

Size	156.5 × 100.4 × 29 mm
Mounting	VESA 75 compatible
