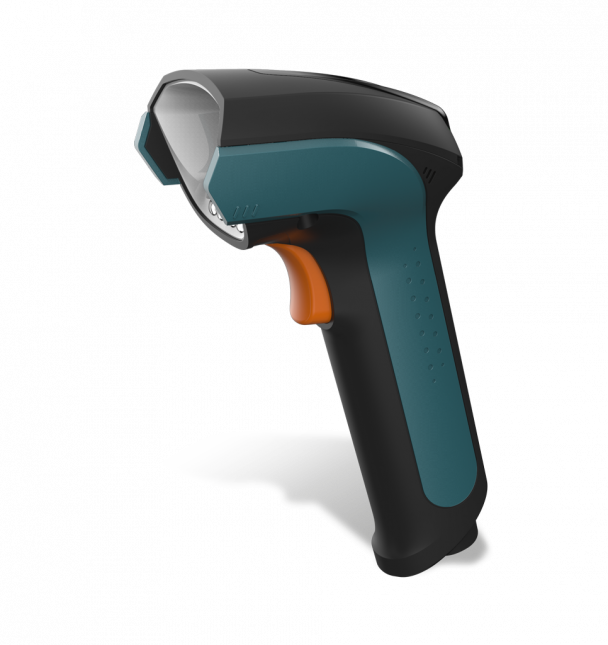

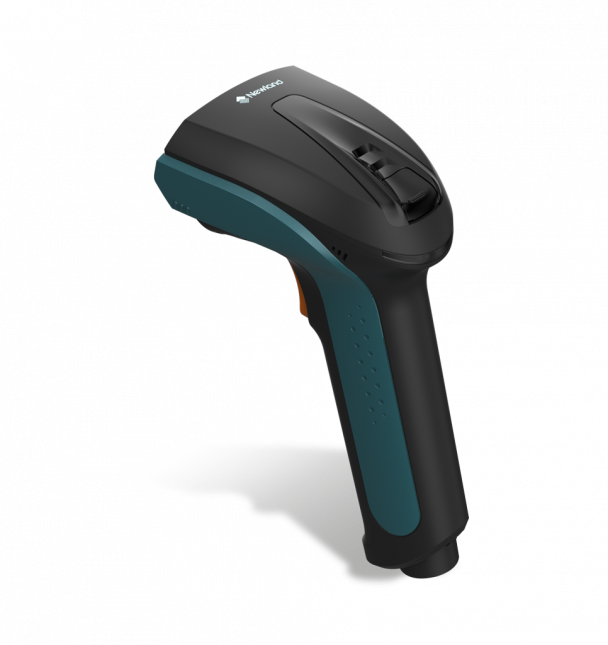

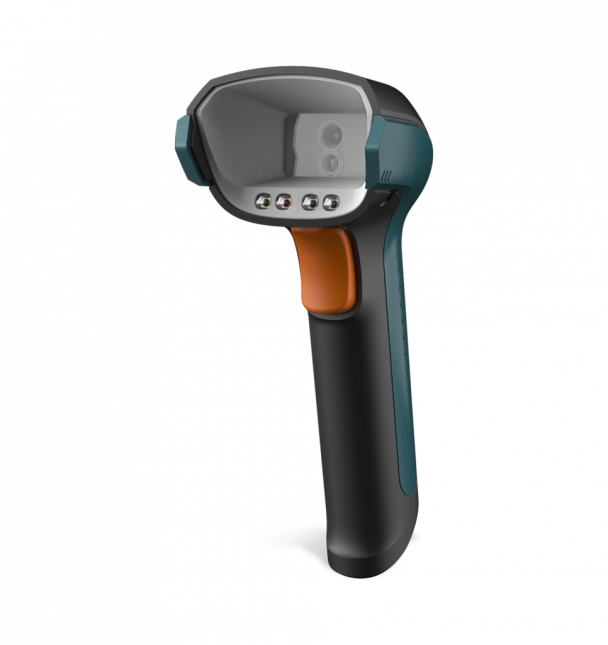

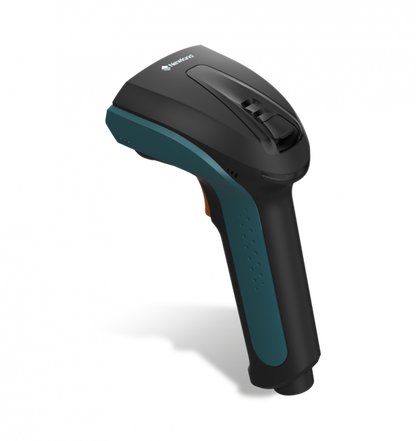

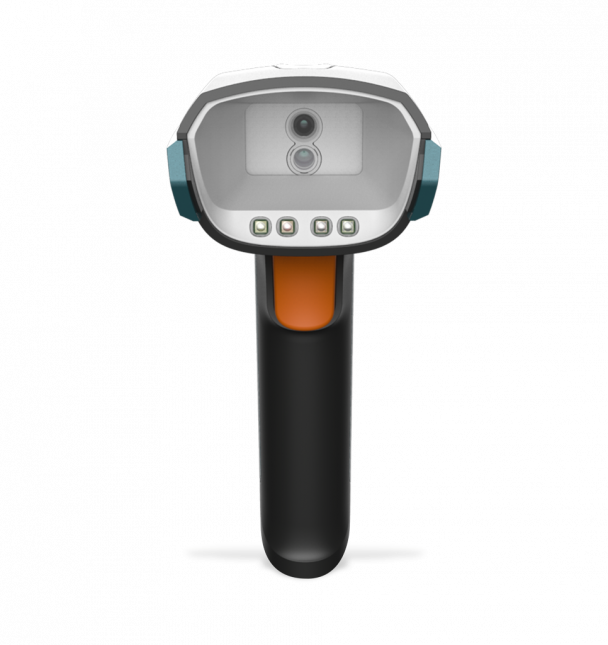

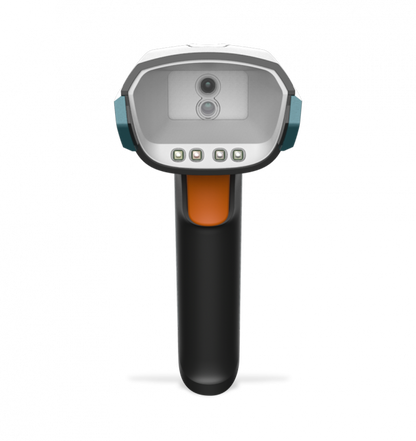

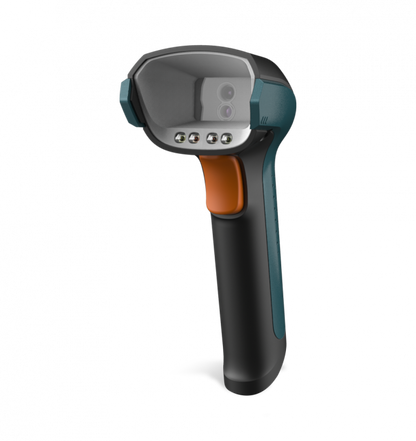

Newland NVH220 Lophius Bluetooth Handheld Scanner
Newland NVH220 Lophius Bluetooth Handheld Scanner
Couldn't load pickup availability
Newland NVH220 Lophius Bluetooth DPM Scanner – Rugged, Intelligent, and Cordless
The Newland NVH220 Lophius Bluetooth is a high-performance handheld barcode scanner built for industrial-grade precision and durability. Featuring AI-powered auto-learning, dual-core processing, and DPM decoding, it reads even the most challenging barcodes—etched, laser-marked, or low-contrast—on curved or reflective surfaces.
With Bluetooth 5.0 connectivity offering up to 150m wireless range, and an IP64-rated housing, this scanner is ideal for manufacturing, logistics, warehousing, and transportation. It ships with a CD220 docking station and CBL042UA USB cable, ensuring seamless charging and data transfer.
Key Features:
- Dual-core processor with AI auto-learning for optimized decoding
- Reads 1D, 2D, and DPM barcodes with high precision
- Advanced illumination: white, red, and diffuse blue ring lights
- Bluetooth 5.0 with up to 150m wireless range
- IP64-rated rugged design with 1.8m drop resistance
- Long battery life: up to 23 hours continuous use
- Includes CD220 docking station and CBL042UA USB cable
- Configurable via Nset software for tailored performance
Technical Specifications
|
Feature |
Details |
|---|---|
|
Image Sensor |
1280 × 960 CMOS |
|
Supported Barcodes |
All major 1D, 2D, and DPM symbologies |
|
Aimer |
532nm LED |
|
Illumination |
White & red direct LED, diffuse blue ring LED |
|
Resolution |
?3mil |
|
Depth of Field |
EAN-13 (13mil): 25–160mm; QR (20mil): 20–180mm |
|
Scan Angles |
Roll: 360°, Pitch: ±50°, Skew: ±50° |
|
Field of View |
Horizontal: 41°, Vertical: 31° |
|
Print Contrast |
?20% |
|
Motion Tolerance |
2m/s |
|
Battery |
3500mAh, up to 60,000 scans per charge |
|
Battery Life |
?23 hours continuous use; 2-hour charge time |
|
Interfaces |
USB, RS232 |
|
Notifications |
Buzzer, LED, Vibrator |
|
Dimensions (Scanner) |
68 × 105 × 169 mm |
|
Dimensions (Cradle) |
103 × 127 × 83 mm |
|
Weight |
Scanner: 220g; Cradle: 230g |
|
Wireless |
Bluetooth 5.0 BLE, up to 150m range |
|
Operating Temp |
-20°C to 50°C |
|
Storage Temp |
-40°C to 70°C |
|
Humidity |
5%–95% (non-condensing) |
|
Drop Resistance |
1.8m |
|
IP Rating |
Scanner: IP64; Cradle: IP42 |
|
Included Accessories |
CD220 docking station, CBL042UA USB cable |
|
Certifications |
FCC, CE, RoHS, IEC63471 |
|
Warranty |
3-Year Manufacturer’s Warranty |
