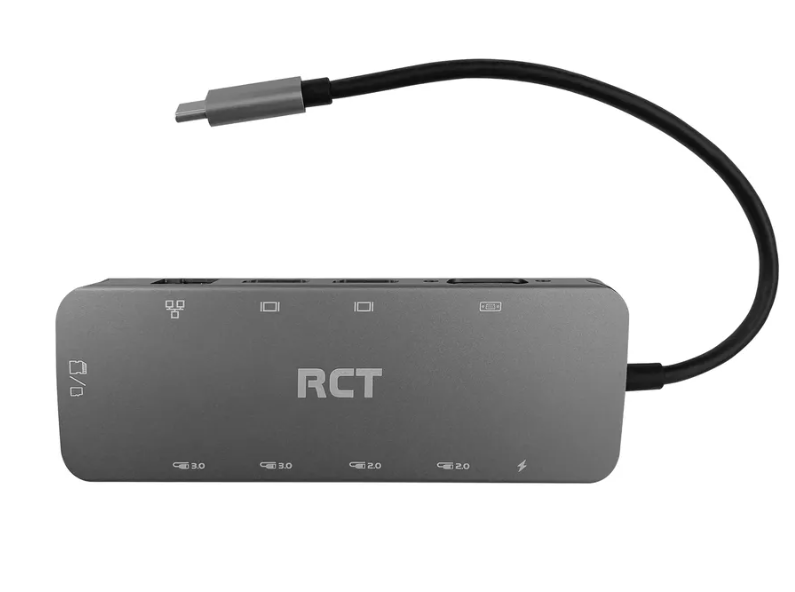

RCT DS-CN3270 USB TYPE-C Mobile Docking Station

RCT DS-CN3270 USB TYPE-C Mobile Docking Station

(*Requires device with USB-C DP Alt mode)

• Gigabit Ethernet RJ45 Port, Compliant to IEEE
  802.3 Specs
• Plug & Play; No Drivers Needed; USB hot-plugging
• Design for Mac OS X 10.10 or higher, or
  Windows 10 with USB-C port
• Requires DP Alt Mode signal from System USB C Port
• Compact and Highly Integrated Design
• Heat Management with Aluminum Casing and
  Durable design
• Compliant to USB Type-C Cable & Connector
  Specs Rev 1.1
• Compliant USB Power Delivery Specs Rev 2.0;
  Adaptive Voltage

Specifications

• USB CONNECTOR:
  USB Type-C (USB reversible connector)
• DEVICE CONNECTORS:
  2 x HDMI 4K @ 30Hz, with Audio
  • 1x VGA

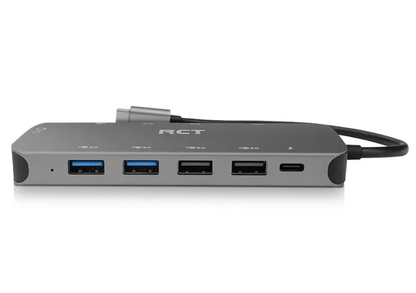

  • 2x USB 3.1 Gen 1 Type-A
  • 2x USB 2.0 Type-A
  • 1x USB C PD 100Watts (PD charger Pass-Thru only)
  • 1x Gigabit RJ45 with LEDs
  • 1x SD Memory Card Slot
  • 1x MicroSD Memory Card Slot
• VGA:
  VGA:1920 x 1080p @ 60Hz
• SINGLE HDMI 1 OR 2:
  Single HDMI 1: 3840 x 2160 @ 30Hz;
  Single HDMI 2: 3840 x 2160 @ 30Hz
• HDMI 1+ VGA:
  1920 x 1080p @ 60Hz; MST-No; SST-Yes
• HDMI 2+ VGA:
  via Apple system 1920 x 1080p @ 60Hz; MST-No; SST-Yes
  via Windows system 1920 x 1080p @ 60Hz; MST-Yes
• HDMI 1+ HDMI 2:
  via Apple system 3840 x 2160 @ 30Hz
  via Windows system 1920 x 1080p @ 60Hz; MST-Yes
• HDMI 1+ HDMI 2+ VGA:
  via Apple system 1920 x 1080p @ 60Hz
  via Windows system 1920 x 1080p @ 60Hz; MST-Yes
• DISPLAY MODES:
  Primary, Extended or Mirror (depend on OS capability)
• POWER SUPPLY:
  Bus-powered
• MATERIAL:
  Aluminum, ABS Plastic
• CABLE LENGTH:
  170 mm
• OS SUPPORT:
  Windows 10, 32-bit and 64-bit; Apple OS X 10.10, 10.11 or greater; Latest ChromeBook
• SYSTEM REQUIREMENTS:
  USB Type-C port MUST support DP Alt Mode
  Optional device: HDMI Display device, USB device, SD Card, Network
