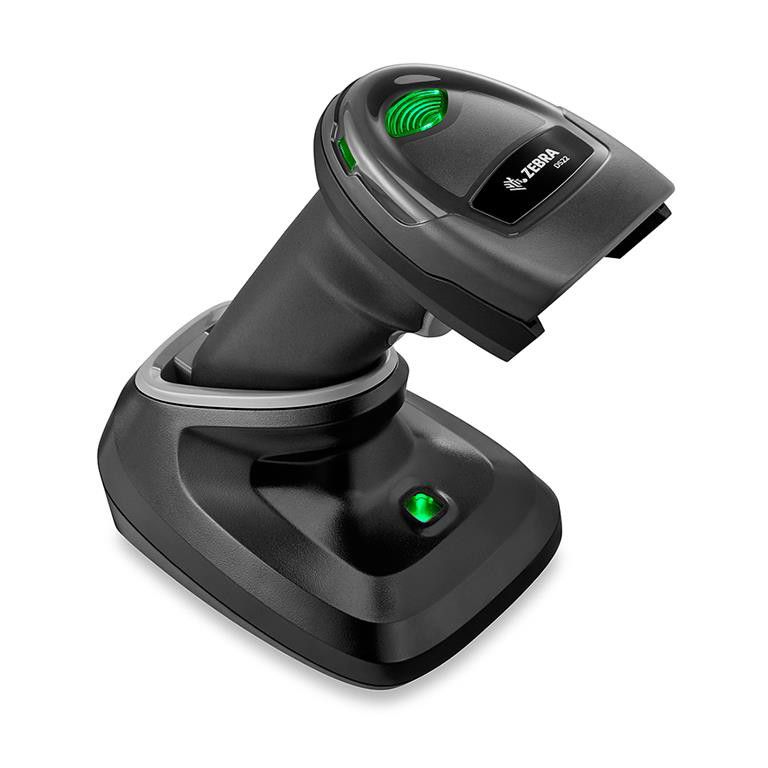

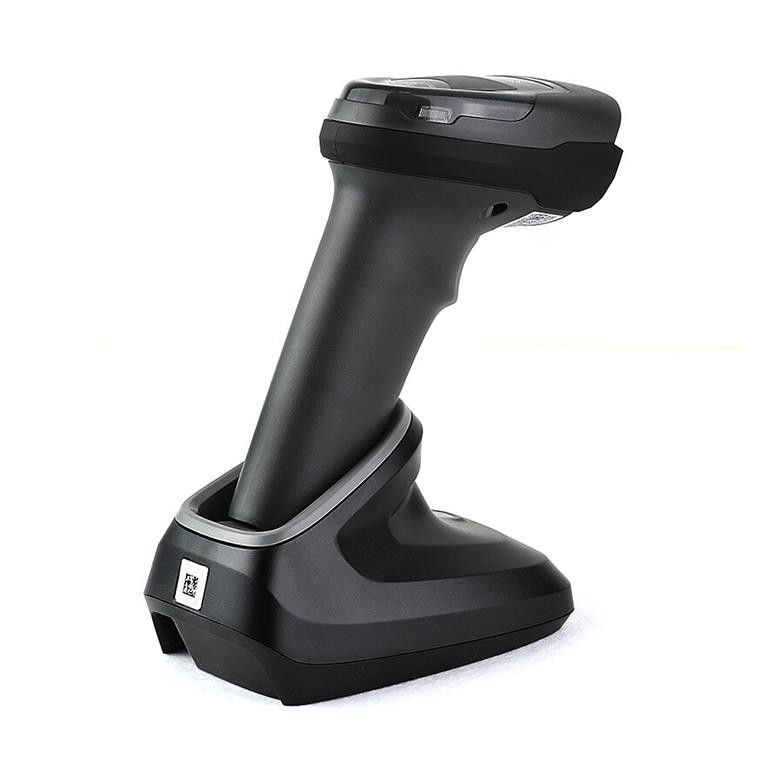

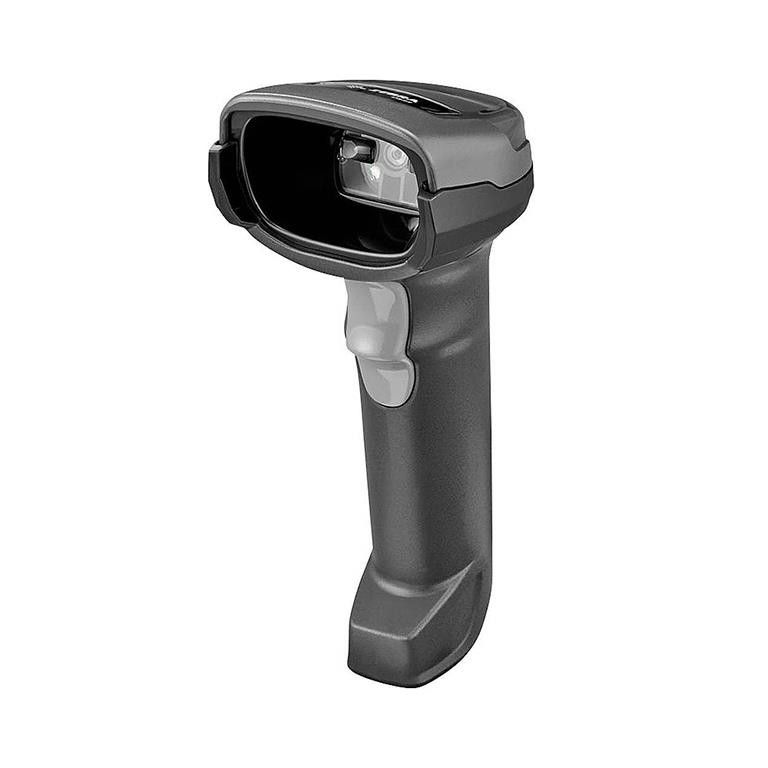

Zebra DS2278 Wireless Barcode Scanner with Presentation Cradle
Zebra DS2278 Wireless Barcode Scanner with Presentation Cradle
Couldn't load pickup availability
Zebra DS2278 Wireless Barcode Scanner – Fast, Reliable, and Built for Modern POS
Streamline your checkout experience with the Zebra DS2278, a high-performance wireless barcode scanner designed for speed, simplicity, and seamless integration. Whether you're running a retail store, warehouse, or tablet-based POS system, the DS2278 delivers best-in-class scanning for both 1D and 2D barcodes—with zero setup required.

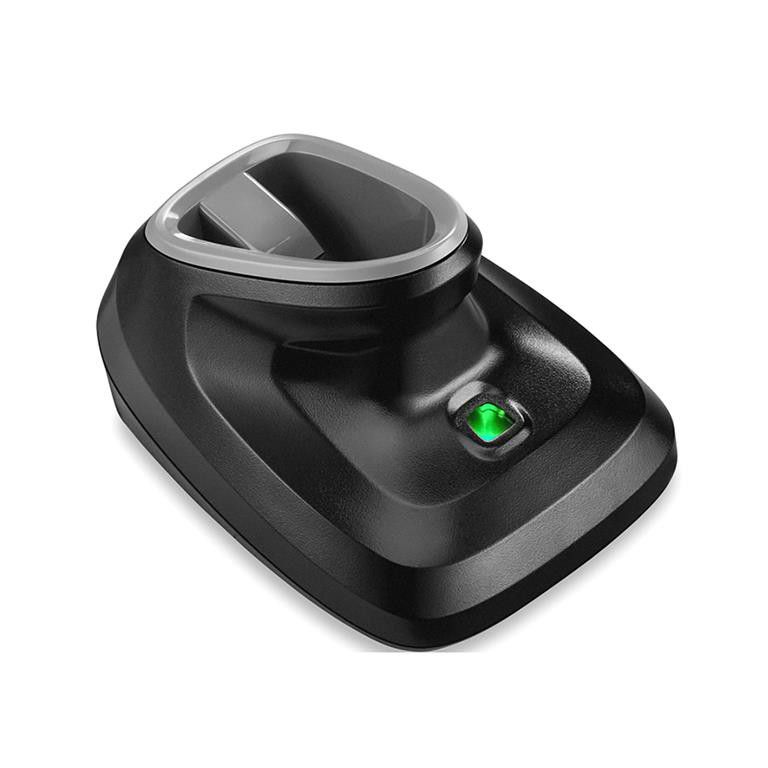

Equipped with Bluetooth 4.0, a presentation cradle, and Micro USB charging, this scanner offers flexible hands-free or handheld operation. Zebra’s PRZM Intelligent Imaging ensures fast decoding—even on damaged or poorly printed barcodes—while intuitive aiming and omni-directional scanning make it easy for anyone to use.
With up to 100,000 scans per charge, global keyboard support, and compatibility with Zebra’s legacy LS2208 systems, the DS2278 is a future-ready upgrade that minimizes deployment costs and maximizes productivity.
Key Features
- Wireless Freedom: Bluetooth 4.0 with BLE, 10m range, supports HID and Serial Port profiles.
- Dual Scanning Modes: Use handheld or hands-free via included cradle.
- High Scan Volume: Up to 100,000 scans per charge with 100-hour battery life.
- PRZM Imaging: Fast, accurate decoding—even on low-quality barcodes.
- Plug-and-Play Setup: Auto-host detect cables and 123Scan software for easy configuration.
- Global Compatibility: Supports 97 international keyboards.
- Backward Compatible: Works with LS2208 accessories to reduce upgrade costs.
- Compact Design: Lightweight and ergonomic for all-day use.
- Included Accessories: Presentation cradle, Micro USB cable, and user manual.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Zebra DS2278 |
| Color | Twilight Black |
| Scan Capability | 1D and 2D barcodes |
| Light Source (Aiming) | Linear 624nm Amber LED |
| Illumination | 2 x 645nm Super-Red LEDs |
| Field of View | 32.8° H × 24.8° V Nominal |
| Image Sensor | 640 × 480 pixels |
| Motion Tolerance (Handheld) | Up to 13 cm/sec for 13 mil UPC |
| Swipe Speed (Hands-Free) | Up to 76.2 cm/sec for 13 mil UPC |
| Bluetooth | Version 4.0 BLE, Class 2, 10m range |
| Battery | 2,400 mAh Li-Ion |
| Scans Per Charge | Up to 100,000 scans |
| Operating Time | Up to 100 hours |
| Dimensions (Scanner) | 17.5 × 6.6 × 9.9 cm |
| Dimensions (Cradle) | 7.1 × 9.4 × 12.2 cm |
| Included | Scanner, Cradle, Micro USB Cable, Manual |
| Warranty | 3-Year Carry-In Manufacturer Warranty |
